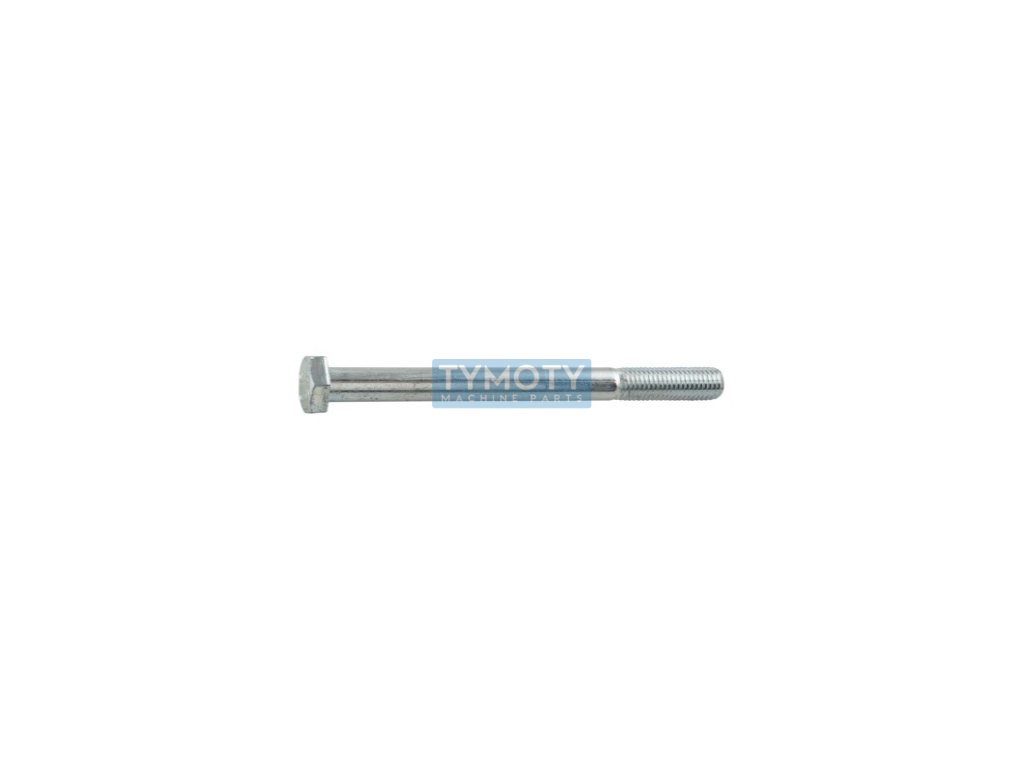

Hexagon screw with partial thread DIN 931 M14x180-10.9 galvanized

Product detailed description

The partially threaded hexagon bolt according to DIN 931, with dimensions M14x180 mm, is designed for applications requiring high strength and reliability. This bolt is made of steel with a strength class of 10.9, which guarantees its high resistance to tensile stress and is suitable for use in demanding conditions in engineering, construction and assembly.

The bolt has a metric thread with a pitch of 2.00 mm, which allows for precise and strong connection of components. The partial thread provides an optimal combination of strength and flexibility during assembly, while allowing for effective transmission of forces in the joints. The screw head has a hexagonal shape, with dimensions of width between surfaces (s) of 22 mm and width between peaks (e) of 24.49 mm, which is in accordance with ISO 4014, ČSN 021101 and EN 24014. The head height (k) is 8.8 mm, which provides sufficient space for the application of torque during assembly.

The surface treatment of the screw is made with white zinc plating, which provides protection against corrosion and extends the life of the component in aggressive environments. This treatment is suitable for outdoor and indoor applications where increased resistance to weathering is required.

The screw meets all the requirements of international standards, which guarantees its compatibility and versatility in various industrial applications. It is an ideal choice for fixed connections where high strength and reliability are required.
