Hexagon screw with partial thread DIN 931 M12x230-8.8 galvanized

Code: 812171
Not rated
1,46 € –8 %
Hexagon screw with partial thread DIN 931 M12x230-8.8 galvanized
1,46 € –8 % 1,34 € / pcs 1,62 € incl. VAT
In stock (445 pcs)
Delivery to:
06/08/2025
Delivery offer
Hexagon head screw, partial thread M12x230-8.8 ZN DIN 931 ČSN 021101.55 ISO 4014

Detailed information

Delivery throughout the EU

Product detailed description

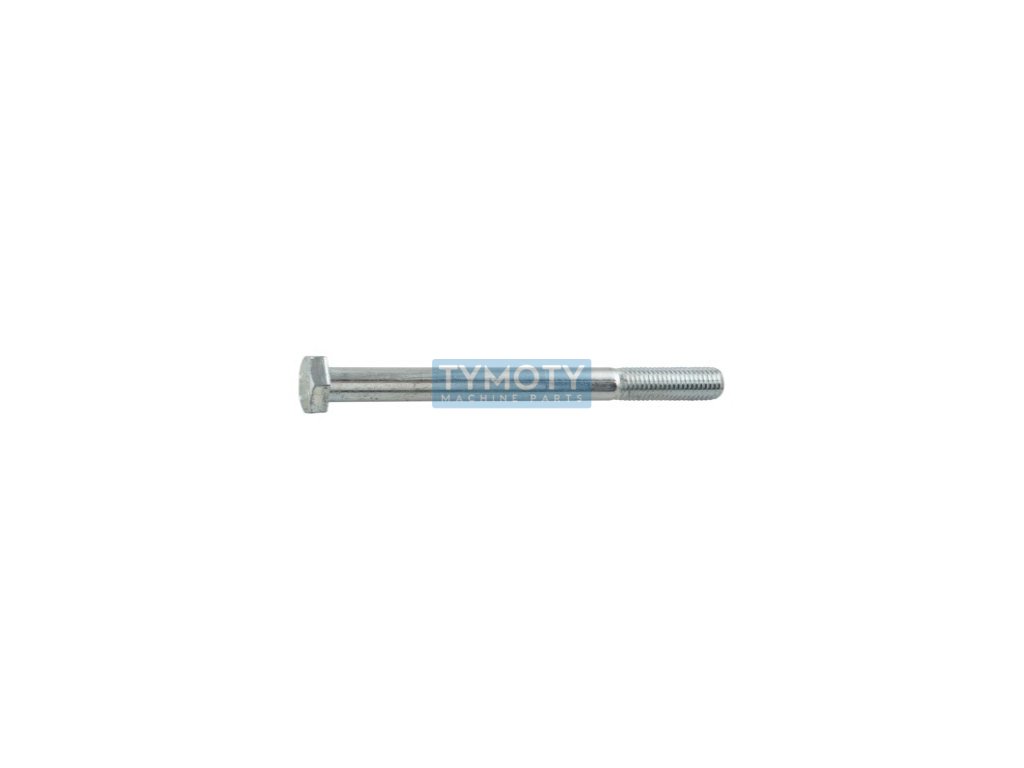

Steel fastener - screw M12x230 ČSN 021101.55 - DIN 931-8.8 galvanized - steel screw with hexagonal head, made of steel of strength class 8.8 with white zinc coating, with partial metric thread M12 with standard. Minimum thread length b = 49 mm. Length of screw body with thread L = 230 mm.

Additional parameters

Category: Fasteners > hexagon head screws > partial thread DIN 931 > galvanized steel 8.8
Weight: 0.216 kg
EAN: 4043952232026
CSN standard: 021101,55
Diameter D (mm): M12
DIN standard: 931
EN standard: 24014
Fortress class: 8,8
Head shape: hexagonal
Height k (mm): 7,5
ISO standard: ~4014
Length L (mm): 230
Material: steel
Pitch: 1,75
Surface finish: zinc white
Thread length b (mm): 49
Thread type: metric
Width e (mm): 21,1
Width s (mm): 19
