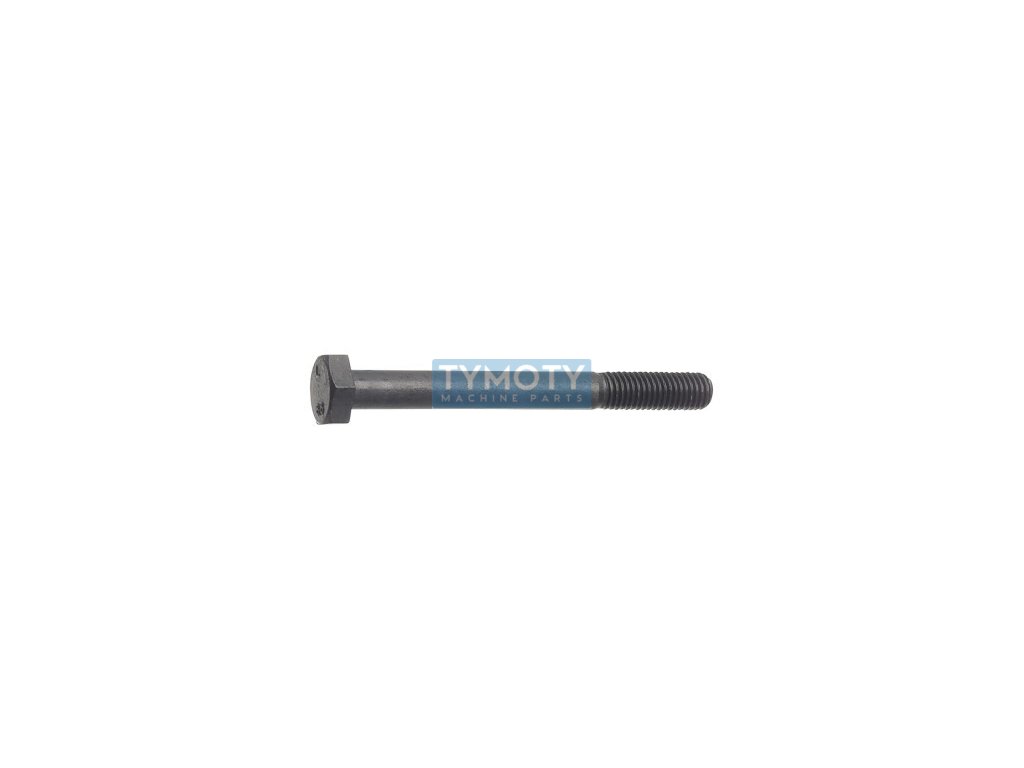

Hexagon screw with partial thread DIN 931 M12x140-10.9 without PU
Code: 813086
Product detailed description

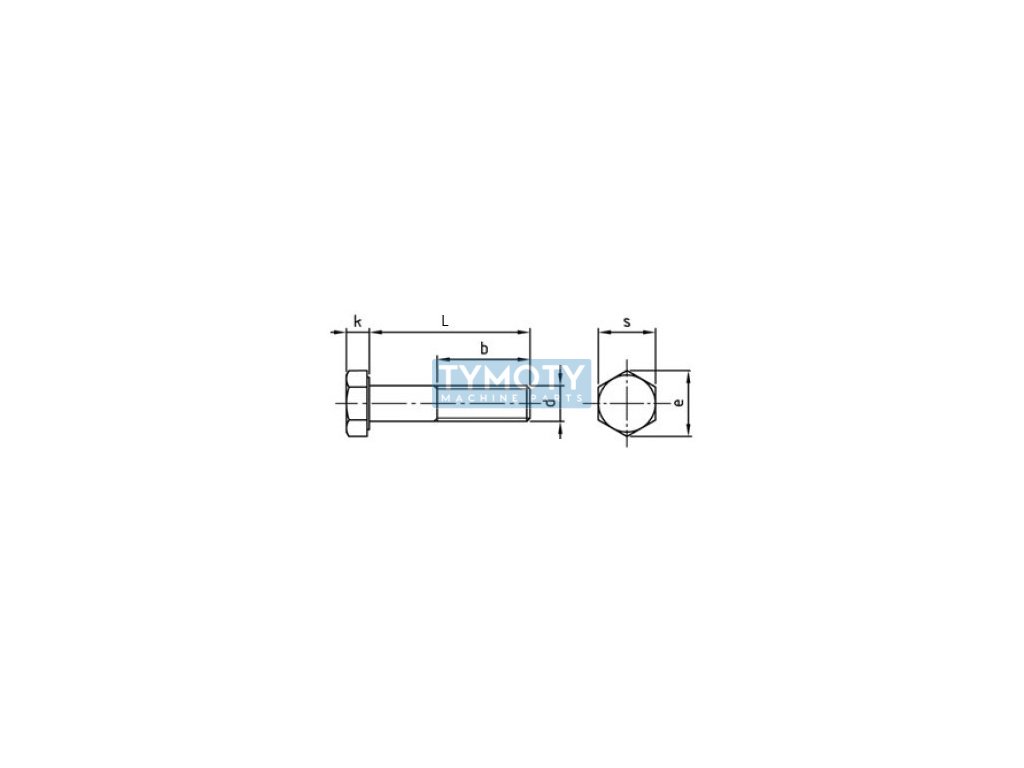

Steel fasteners - screw M12x140 ČSN 021101.70 - DIN 931-10.9 - steel screw with hexagonal head, made of steel of strength class 10.9 without surface treatment, with partial metric thread M12 with standard pitch mm. Minimum thread length b = 36 mm. Length of the screw body with thread L = 140 mm.Additional parameters
| Category: | Fasteners > hexagon head screws > partial thread DIN 931 > steel 10.9 without treatment |
|---|---|
| Weight: | 0.136 kg |
| EAN: | 4043952211670 |
| CSN standard: | 021101,70 |
| Diameter D (mm): | M12 |
| DIN standard: | 931 |
| EN standard: | 24014 |
| Fortress class: | 10,9 |
| Head shape: | hexagonal |
| Height k (mm): | 7,5 |
| ISO standard: | ~4014 |
| Length L (mm): | 140 |
| Material: | steel |
| Pitch: | 1,75 |
| Surface finish: | without modification |
| Thread length b (mm): | 36 |
| Thread type: | metric |
| Width e (mm): | 21,1 |
| Width s (mm): | 19 |
