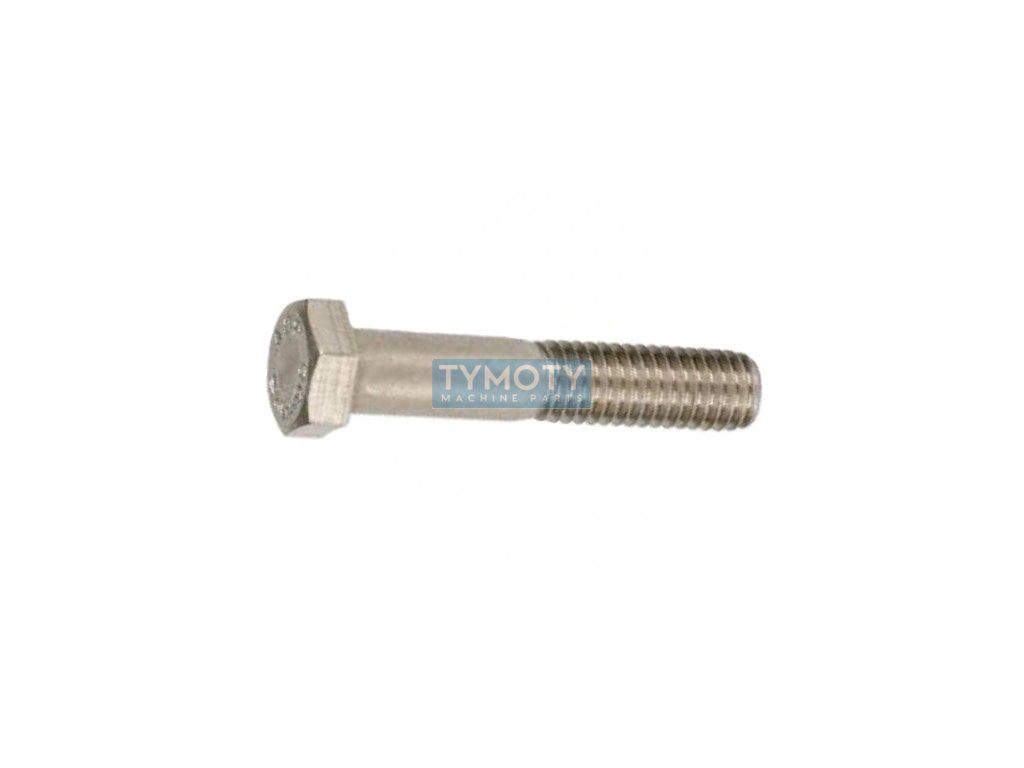

Hexagon screw with partial thread DIN 931 M10x130 stainless steel A4-80

Product detailed description

The partially threaded hexagon bolt according to DIN 931, ISO 4014 and ČSN 021101 is designed for applications requiring high strength and corrosion resistance. This bolt has a metric thread with a diameter of M10 and a length of 130 mm. Partial thread means that the thread is not along the entire length of the bolt, which allows for better force distribution and a stronger connection in applications where a combination of threaded and smooth surfaces is required.

The head of the bolt is hexagonal, with dimensions of width between surfaces (s) 17 mm and width between diagonals (e) 19 mm, which allows easy handling with standard wrenches. The head height (k) is 6.4 mm, which provides sufficient space for applying torque without damaging the head.

The material of the screw is A4-80 stainless steel, which is known for its high corrosion resistance, making it suitable for use in harsh environments, including outdoor and industrial applications. The A4-80 strength class indicates that the screw has a minimum tensile strength of 800 MPa, which is ideal for applications with higher stress.

The screw does not have any special surface treatment, which is common for stainless materials that naturally resist corrosion without the need for additional treatment. This screw is suitable for use in engineering, construction and assembly applications where a reliable and durable connection is required.
