Hexagon screw with full thread DIN 933 M16x50 stainless steel A2-70
Code: 890885
Product detailed description
ČSN 021103 - DIN 933-A2-70 M16x50 - stainless steel fastener - screw with hexagonal head and thread to the head, made of stainless steel A2, strength class 70, with metric thread M16 with standard pitch 0.0 mm.Additional parameters
| Category: | Fasteners > hexagon head screws > full thread DIN 933 > stainless steel A2 |
|---|---|
| Weight: | 0.104 kg |
| EAN: | 4043952274392 |
| CSN standard: | 021103 |

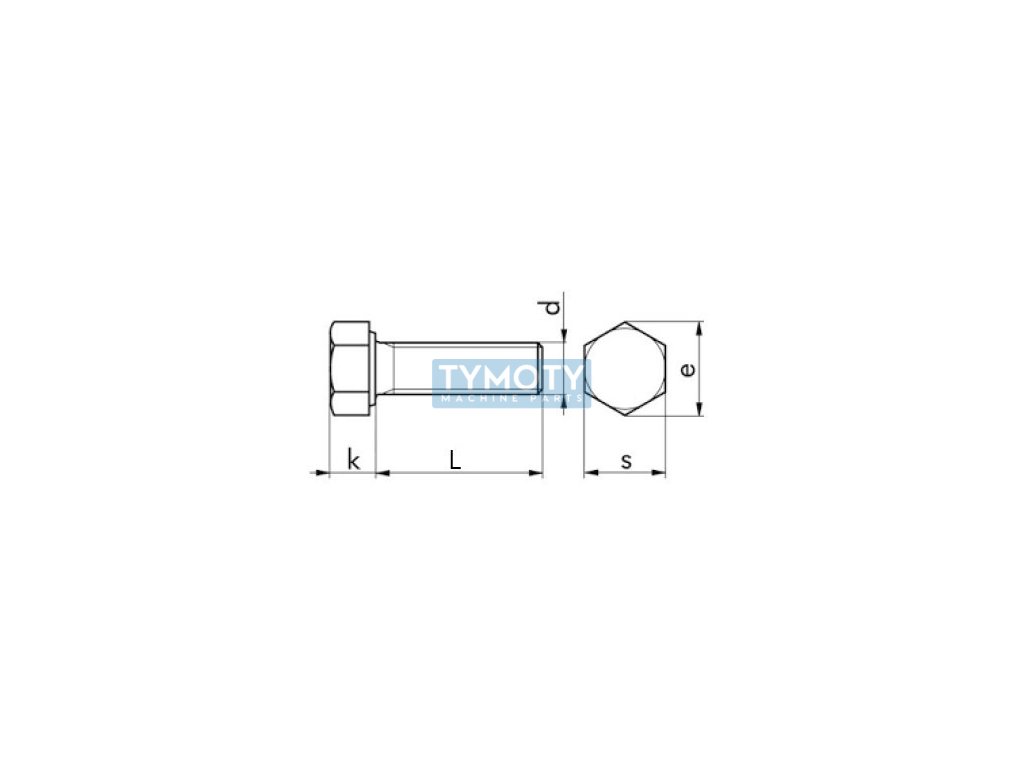

| Diameter D (mm): | M16 |
| DIN standard: | 933 |
| EN standard: | 24017 |
| Fortress class: | A2-70 |
| Head shape: | hexagonal |
| Height k (mm): | 10 |
| ISO standard: | 4017 |
| Length L (mm): | 50 |
| Material: | stainless steel |
| Pitch: | 2,00 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width e (mm): | 26,75 |
| Width s (mm): | 24 |
