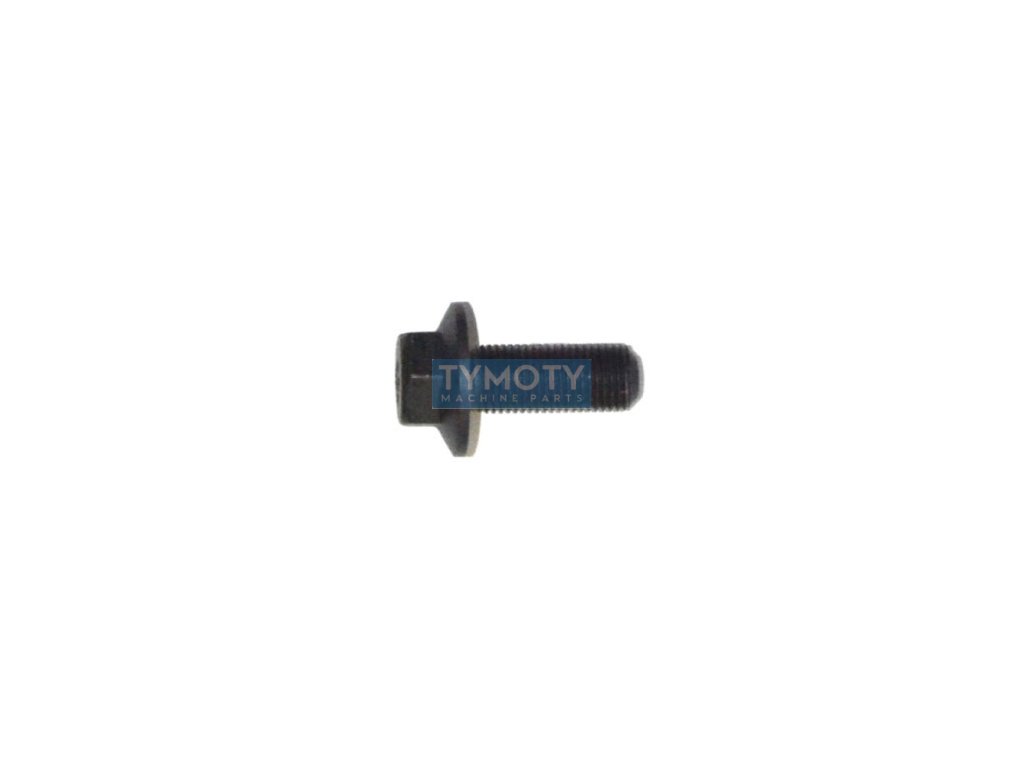

Hexagon screw with collar DIN 6921 M8x20-8.8 without PU
Code: 819516
Product detailed description
Steel fastener - M8x20 screw DIN 6921-8.8 - steel screw with hexagonal head with smooth collar, made of steel of strength class 8.8 without surface treatment, with partial metric thread M8 with standard pitch 1.25 mm. Minimum thread length b = 22 mm. Length of the screw body with thread L = 20 mm.Additional parameters
| Category: | Fasteners > hexagon head screws > with collar DIN 6921 > steel 8.8 without treatment |
|---|---|
| Weight: | 0.017 kg |
| EAN: | 4043952502419 |

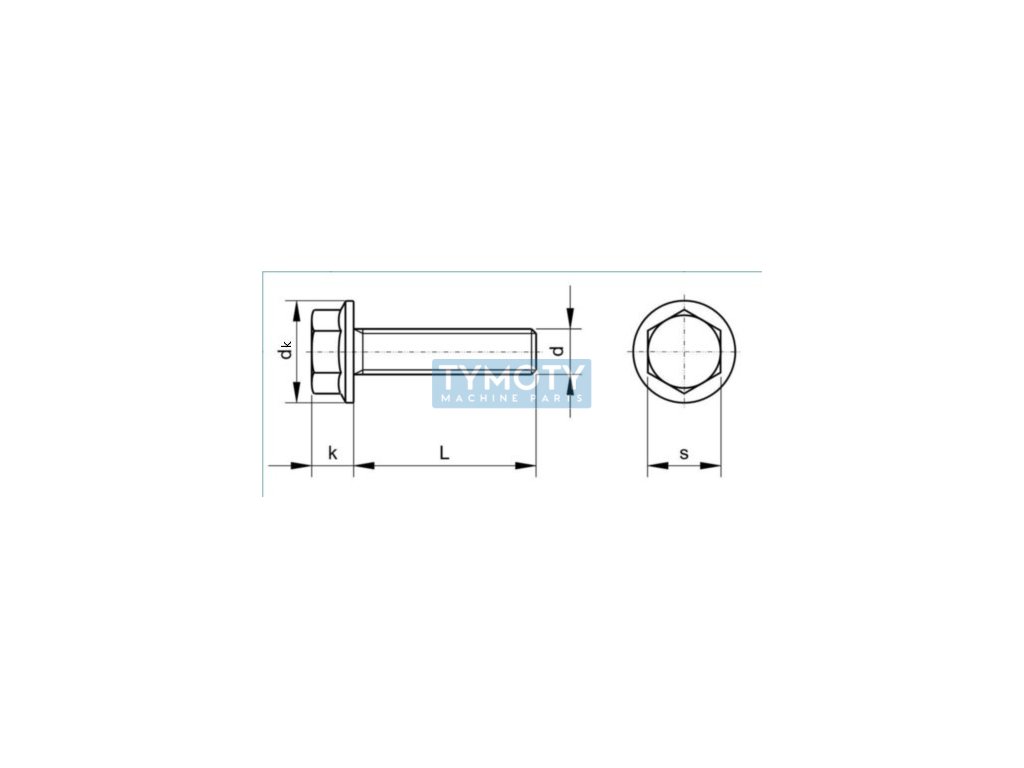

| Diameter D (mm): | M8 |
| Diameter dk (mm): | 18 |
| DIN standard: | 6921 |
| EN standard: | 1665 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal with collar |
| Height k (mm): | 8,1 |
| Length L (mm): | 20 |
| Material: | steel |
| Pitch: | 1,25 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 13 |
