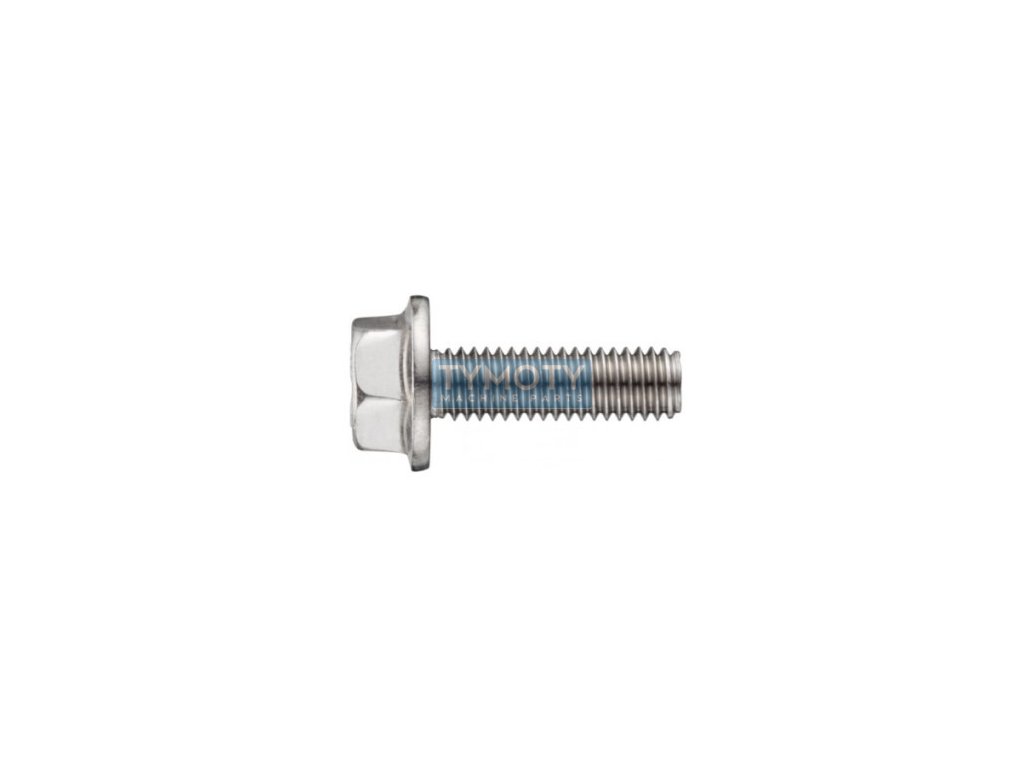

Hexagon screw with collar DIN 6921 M5x12 stainless steel A2
Code: 895610
Product detailed description
Stainless steel fasteners - M5x12 DIN 6921 A2 screw - stainless steel hexagon head screw with smooth collar, made of A2 stainless steel without surface treatment, with M5 metric thread with standard pitch 0.80 mm. Length of the screw body with thread L = 12 mm.Additional parameters
| Category: | Fasteners > hexagon head screws > with collar DIN 6921 > stainless steel A2 |
|---|---|
| Weight: | 0.004 kg |
| EAN: | 4043952716090 |
| Diameter D (mm): | M5 |
| Diameter dk (mm): | 11,58 |
| DIN standard: | 6921 |
| EN standard: | 1665 |
| Fortress class: | A2-70 |
| Head shape: | hexagonal with collar |
| Height k (mm): | 5,4 |
| Length L (mm): | 12 |
| Material: | stainless steel |
| Pitch: | 0,80 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 8 |
