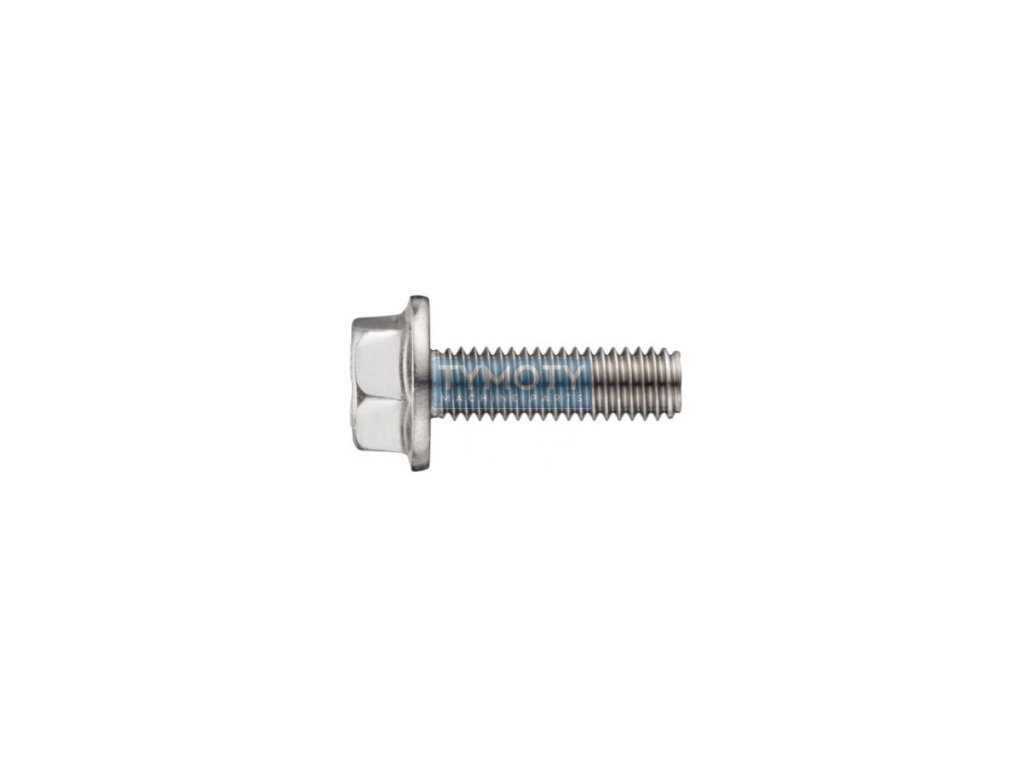

Hexagon screw with collar DIN 6921 M5x10 stainless steel A2
Code: 895609Product detailed description

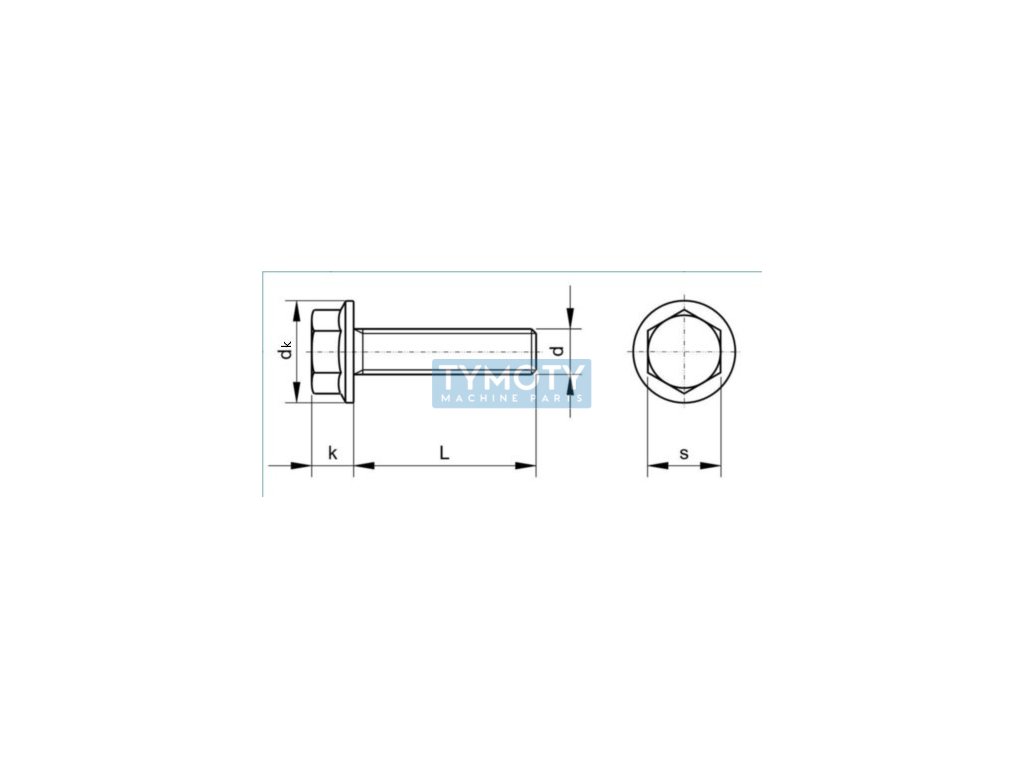

Stainless steel fasteners - screw M5x10 DIN 6921 A2 - stainless steel screw with hexagon head and smooth collar, made of A2 stainless steel without surface treatment, with metric thread M5 with standard pitch 0.80 mm. Length of the screw body with thread L = 10 mm.Additional parameters
Category: | Fasteners > hexagon head screws > with collar DIN 6921 > stainless steel A2 |
---|---|
Weight: | 0.004 kg |
EAN: | 4043952716083 |
Diameter D (mm): | M5 |
Diameter dk (mm): | 11,58 |
DIN standard: | 6921 |
EN standard: | 1665 |
Fortress class: | A2-70 |
Head shape: | hexagonal with collar |
Height k (mm): | 5,4 |
Length L (mm): | 10 |
Material: | stainless steel |
Pitch: | 0,80 |
Surface finish: | without modification |
Thread type: | metric |
Width s (mm): | 8 |
