Hexagon screw with collar DIN 6921 M10x16 stainless steel A2
Code: 895638
Product detailed description

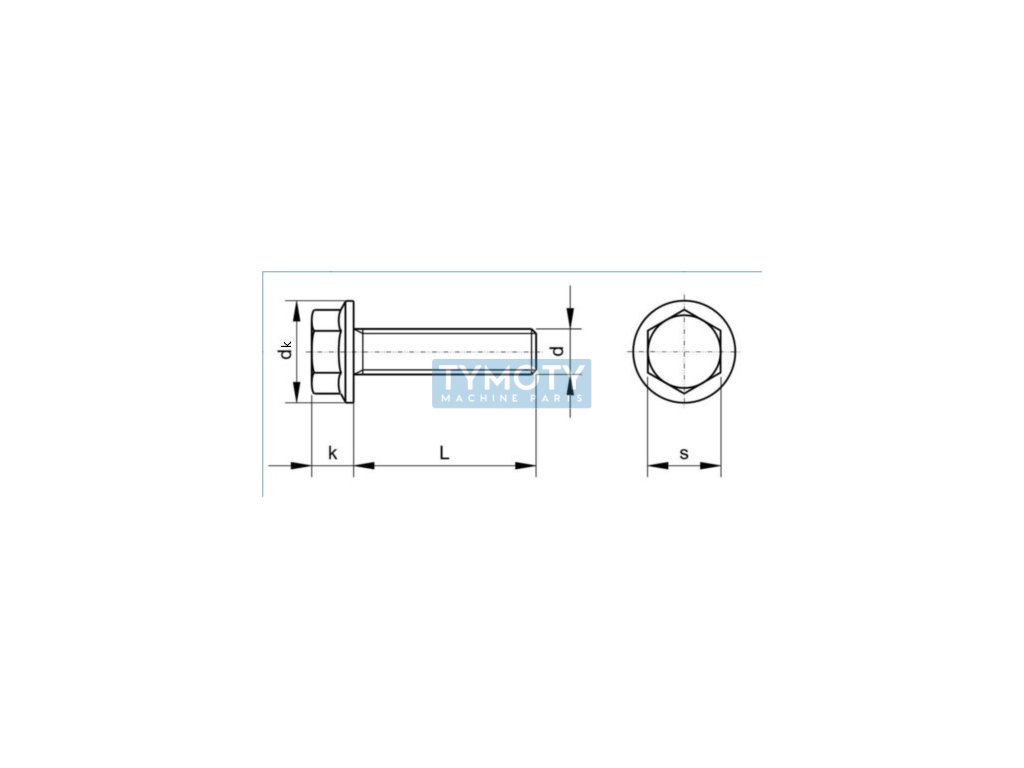

Stainless steel fasteners - screw M10x16 DIN 6921 A2 - stainless steel screw with hexagon head and smooth collar, made of A2 stainless steel without surface treatment, with metric thread M10 with standard pitch 1.50 mm. Length of the screw body with thread L = 16 mm.Additional parameters
| Category: | Fasteners > hexagon head screws > with collar DIN 6921 > stainless steel A2 |
|---|---|
| Weight: | 0.022 kg |
| Diameter D (mm): | M10 |
| Diameter dk (mm): | 22,3 |
| DIN standard: | 6921 |
| EN standard: | 1665 |
| Fortress class: | A2-70 |
| Head shape: | hexagonal with collar |
| Height k (mm): | 9,2 |
| Length L (mm): | 16 |
| Material: | stainless steel |
| Pitch: | 1,50 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width s (mm): | 15 |
