Hexagon screw partial thread DIN 960 M18x1.50x60-8.8 zinc
Code: 837356
Product detailed description

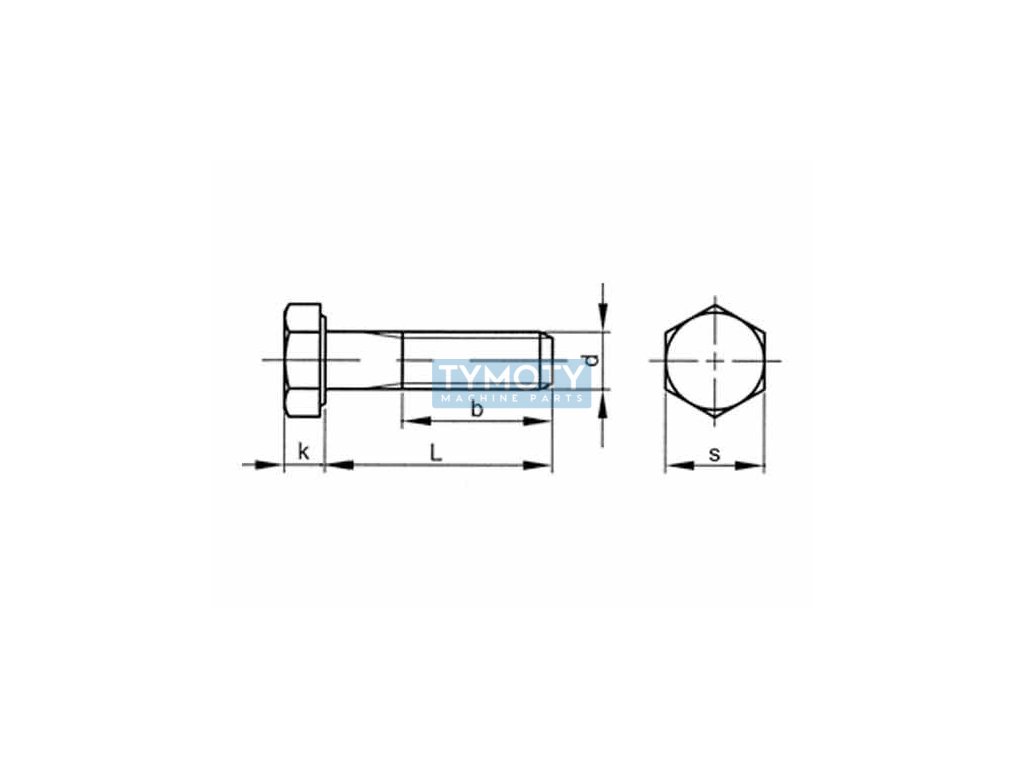

The partially threaded hexagon head screw complies with DIN 960, ČSN 021101 and ISO 8765 standards, which ensures its suitability for applications requiring precise mechanical connections with high strength requirements. This screw has a metric fine thread with a diameter of M18 and a pitch of 1.5 mm. The total length of the screw is 60 mm, while the length of the threaded part is 38 mm.The screw head is hexagonal, with dimensions of the width between the surfaces (s) of 27 mm and the width between the diagonals (e) of 30 mm. The head height (k) is 11.5 mm, which provides sufficient support for the tool during assembly. The screw is made of steel of strength class 8.8, which is suitable for medium-duty applications where a combination of strength and flexibility is required.
The surface treatment is white zinc plating, which provides protection against corrosion and extends the life of the screw in environments with moderate humidity or chemical influences. This screw is ideal for use in engineering and construction, where high precision and reliability of connections are required.
Additional parameters
| Category: | Fasteners > hexagon head screws > fine part. thread DIN 960 > galvanized steel 8.8 |
|---|---|
| Weight: | 0.122 kg |
| CSN standard: | 021101 |
| Diameter D (mm): | M18x1,50 |
| DIN standard: | 960 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal |
| Height k (mm): | 11,5 |
| ISO standard: | 8795 |
| Length L (mm): | 60 |
| Material: | steel |
| Pitch: | 1,50 |
| Surface finish: | zinc white |
| Thread length b (mm): | 38 |
| Thread type: | metric fine |
| Width e (mm): | 30 |
| Width s (mm): | 27 |
