Hexagon screw partial thread DIN 960 M14x1.50x75-10.9 zinc

Product detailed description

The hexagon head screw according to DIN 960, ČSN 021101 and ISO 8765 is designed for applications requiring precise mechanical connections with high demands on strength. This screw has a metric fine thread with dimensions M14x1.50 and a length of 75 mm. The partial threading, which is 34 mm long, allows for optimal stress distribution in the connection, which is ideal for applications where high strength and reliability are required.

The screw is made of steel with strength class 10.9, which guarantees high mechanical resistance and the ability to carry significant loads. The surface treatment is white zinc plating, which provides protection against corrosion and increases the service life of the component in demanding conditions.

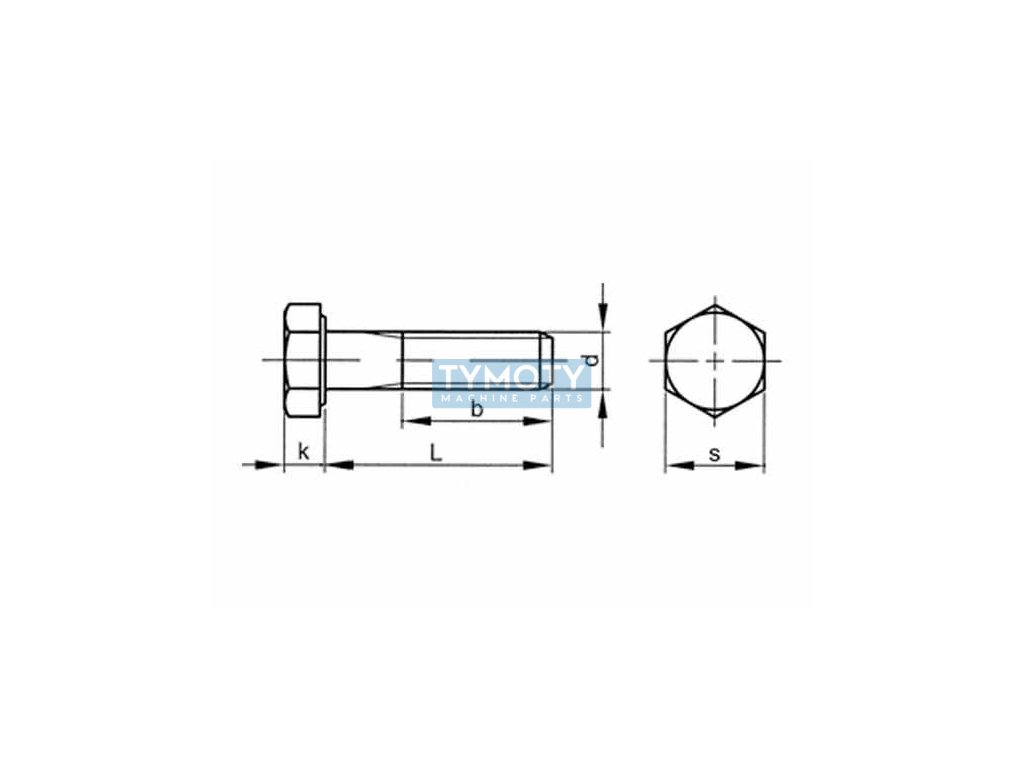

The hexagon head of the screw has a width of 22 mm (s) and the distance between the opposing surfaces (e) is 24.49 mm. The head height (k) is 8.8 mm, which provides sufficient surface area for applying torque with a wrench. The fine thread pitch of 1.5 mm allows for precise adjustment and a firm connection, which is especially important in applications where accuracy and stability are required.

This screw is ideal for use in mechanical engineering, the automotive industry and other industries where high demands are placed on the strength and reliability of the connections. It is suitable for applications where components need to be connected with high precision and ensure long-term stability of the connection.
