Hexagon screw full thread DIN 961 M8x1.00x35-10.9

Product detailed description

The hexagon head screw with a fine metric thread is manufactured according to DIN 961, which also corresponds to the ČSN 021103 and ISO 8676 standards. This component is designed for applications requiring high precision and strength of connections, especially in mechanical engineering and construction. The screw has a full thread up to the head, which allows it to be used in situations where maximum variability in thread length is required.

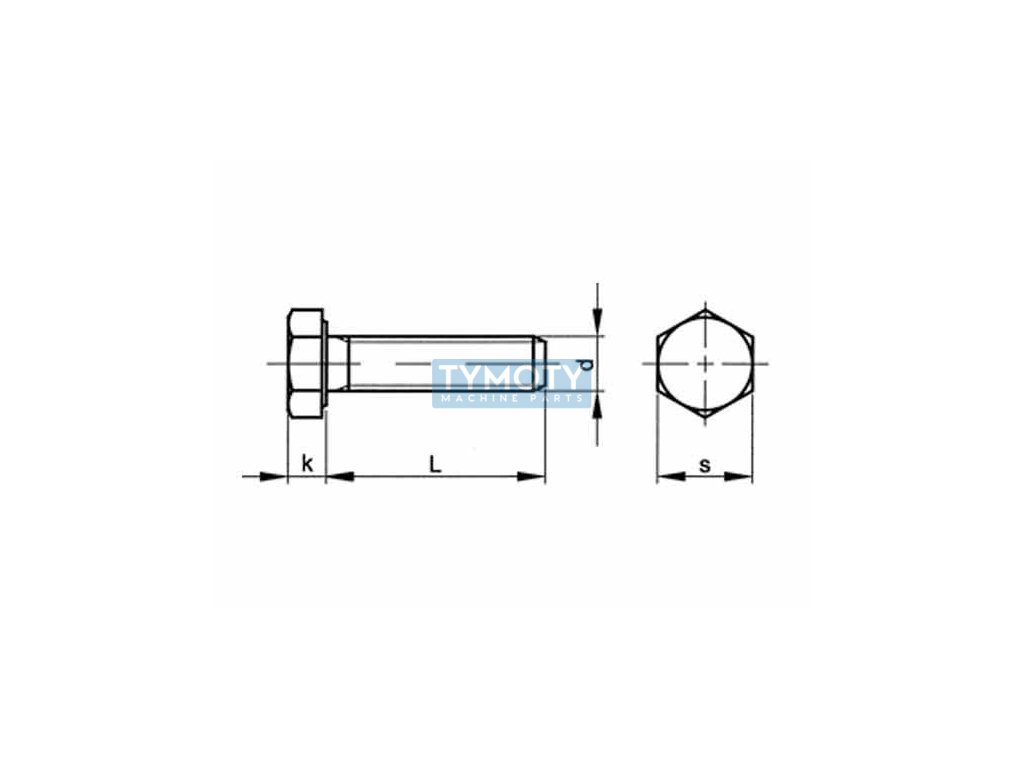

The diameter of the screw is M8 with a fine thread pitch of 1.00 mm, which guarantees precise adjustment and a solid connection. The total length of the screw is 35 mm. The hexagon head has a width of 13 mm (width s) and an effective width of 14 mm (width e), while its height is 5.3 mm (height k). These dimensions are optimized for easy handling with common tools such as wrenches or sockets.

The screw material is 10.9 strength steel, which means it has high tensile strength and is suitable for demanding mechanical applications. The screw is supplied without surface treatment, which is important to consider when using it in environments with a risk of corrosion. If necessary, additional surface treatments can be applied according to the requirements of a specific application.

This screw is ideal for use in situations where high precision and joint strength are required, while its design features allow for a wide range of applications within mechanical engineering and construction.
