Hexagon screw full thread DIN 961 M22x1.50x40-8.8

Product detailed description

Hexagonal screw with fine metric thread according to DIN 961, ČSN 021103 and ISO 8676 is designed for precise and strong connections in mechanical engineering and construction. This connecting element has a thread diameter of M22 with a fine pitch of 1.50 mm, which allows for higher precision and strength of the connection compared to a standard metric thread. The total length of the screw is 40 mm.

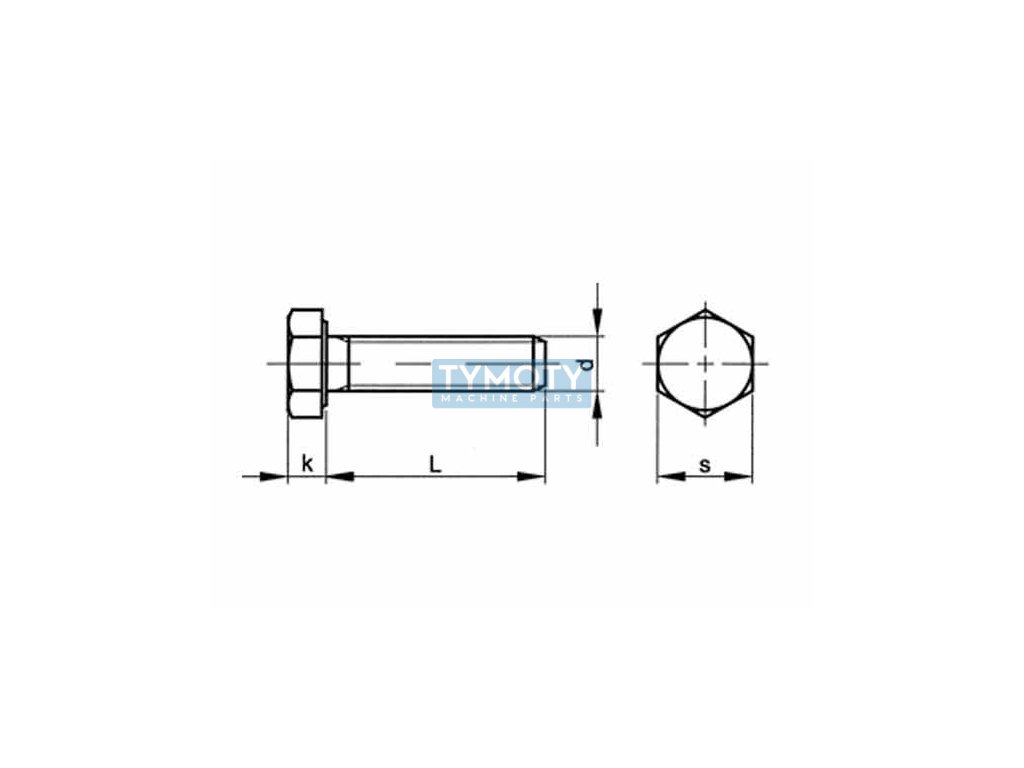

The screw head has a hexagonal shape with dimensions of width between surfaces (s) 32 mm and width between diagonals (e) 36 mm, which ensures a reliable grip during assembly. The head height (k) is 14 mm. The screw is made of steel with a strength class of 8.8, which means that it has a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa, which makes it suitable for use in demanding applications where high strength and resistance to mechanical stress are required.

The screw is supplied without surface treatment, which is suitable for applications where additional corrosion protection is not required or where further surface treatment is planned according to specific project requirements. This type of screw is ideal for use in areas where it is necessary to ensure reliable and precise connection of components, such as machine and equipment construction and other technical applications.
