Hexagon screw full thread DIN 961 M18x1.50x55-10.9

Product detailed description

The screw with a hexagonal head and a fine metric thread according to DIN 961, ISO 8676 and ČSN 021103 is intended for precise and strong connections in mechanical engineering and construction. This component has a diameter of M18 with a fine thread pitch of 1.50 mm and a total length of 55 mm. The screw is made of steel with a strength class of 10.9, which guarantees high strength and resistance to mechanical stress.

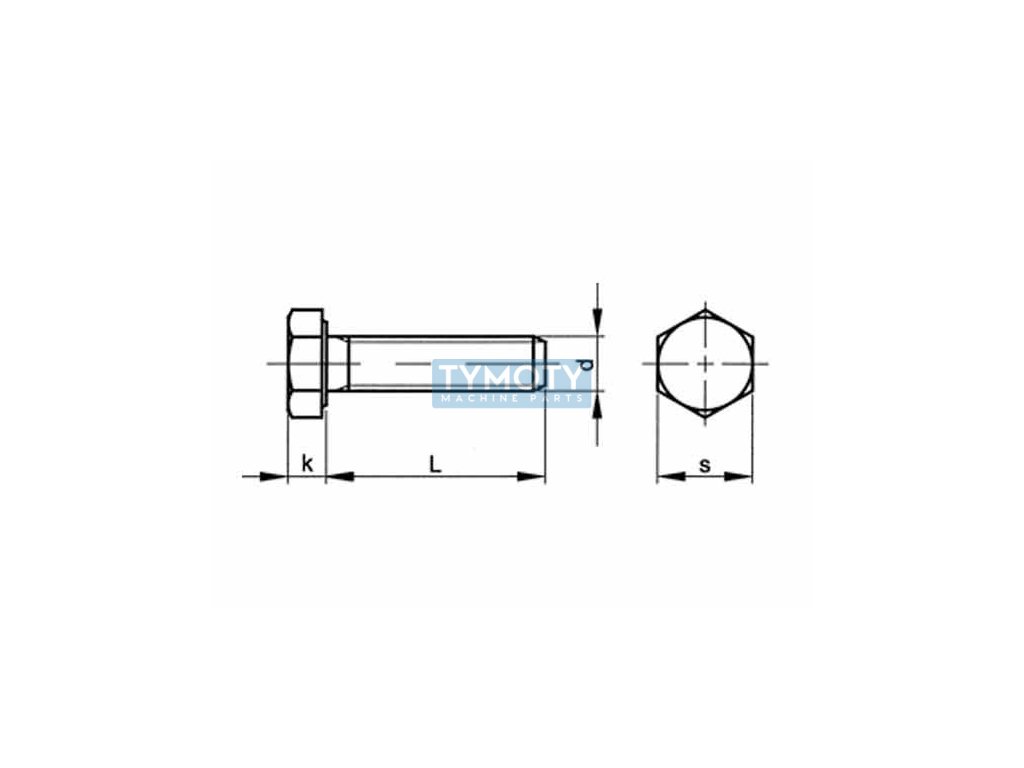

The screw head is hexagonal, with dimensions of the width between the surfaces (s) of 27 mm and the width between the diagonals (e) of 30 mm, while the head height (k) is 11.5 mm. The screw is supplied without surface treatment, which is suitable for applications where additional corrosion protection or aesthetic modifications are not required.

With its fine metric thread, this screw is ideal for applications where higher accuracy and joint strength are required, such as adjustment mechanisms or structural joints in precision equipment. The screw is compatible with DIN 961, ISO 8676 and ČSN 021103 standards, which ensures its wide applicability in international projects.
