Hexagon screw full thread DIN 961 M14x1.50x45-10.9
Code: 838575
Product detailed description
The hexagon head screw with fine metric thread is manufactured according to DIN 961, which also corresponds to ISO 8676 and ČSN 021103. This screw has a full thread up to the head, which allows it to be used in applications requiring precise and strong connections, especially in the field of mechanical engineering and construction.The screw has a diameter of M14 with a fine thread with a pitch of 1.50 mm and a total length of 45 mm. It is made of steel of strength class 10.9, which means that it has a high tensile strength, namely at least 1040 MPa, and is suitable for applications where high mechanical resistance is required.

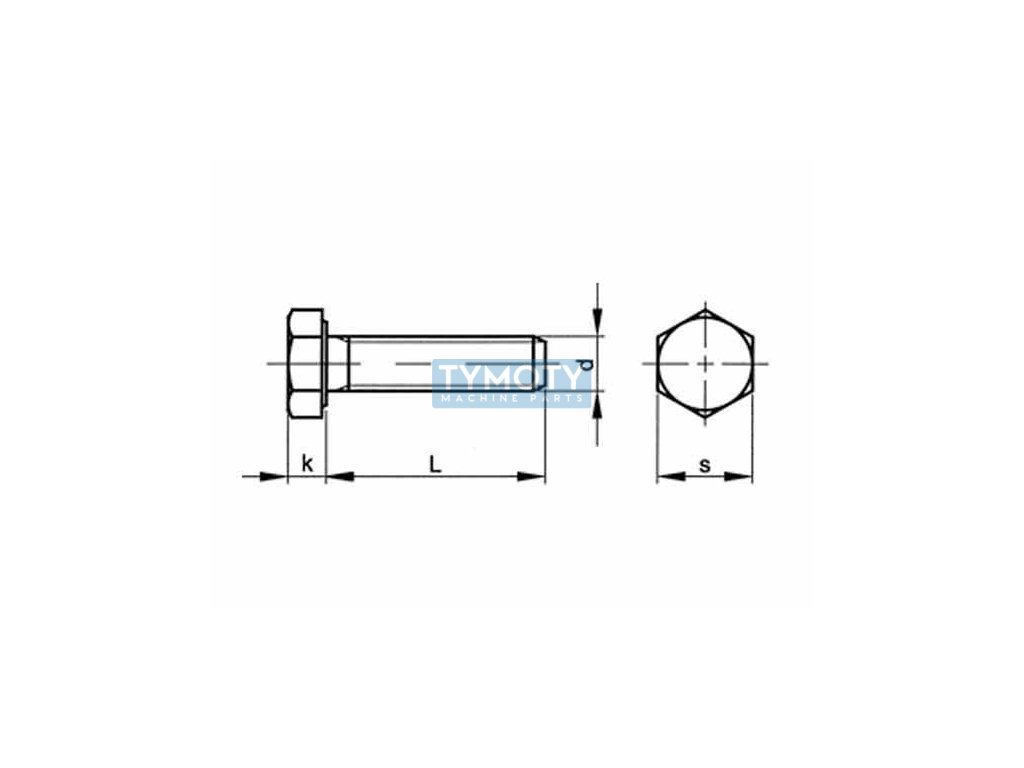

The screw head has a hexagonal shape, which allows easy assembly using standard wrenches. The width between the head surfaces is 22 mm, while the distance between opposite corners is 24.49 mm. The head height is 8.8 mm, which provides sufficient space for the tool to apply torque.
This screw is supplied without surface treatment, which means that it is suitable for applications where additional corrosion protection is not required, or where subsequent surface treatment is planned according to specific project requirements. The screw is ideal for use in situations where high precision and joint strength are required.
Additional parameters
| Category: | Fasteners > hexagon head screws > fine full thread DIN 961 > steel 10.9 without treatment |
|---|---|
| Weight: | 0.075 kg |
| EAN: | 4043952312766 |
| CSN standard: | 021103 |
| Diameter D (mm): | M14x1,50 |
| DIN standard: | 961 |
| Fortress class: | 10,9 |
| Head shape: | hexagonal |
| Height k (mm): | 8,8 |
| ISO standard: | ~8676 |
| Length L (mm): | 45 |
| Material: | steel |
| Pitch: | 1,50 |
| Surface finish: | without modification |
| Thread type: | metric fine |
| Width e (mm): | 24,49 |
| Width s (mm): | 22 |
