Hexagon screw full thread DIN 961 M14x1.50x100-10.9

Product detailed description

The screw with a hexagonal head and a fine metric thread according to DIN 961, ČSN 021103 and ISO 8676 is intended for use in precise and solid connections in mechanical engineering and construction. This screw has a thread diameter of M14 with a fine pitch of 1.50 mm, which allows for precise adjustment and a solid connection of components. The total length of the screw is 100 mm, with the entire thread extending to the head, which increases flexibility during assembly.

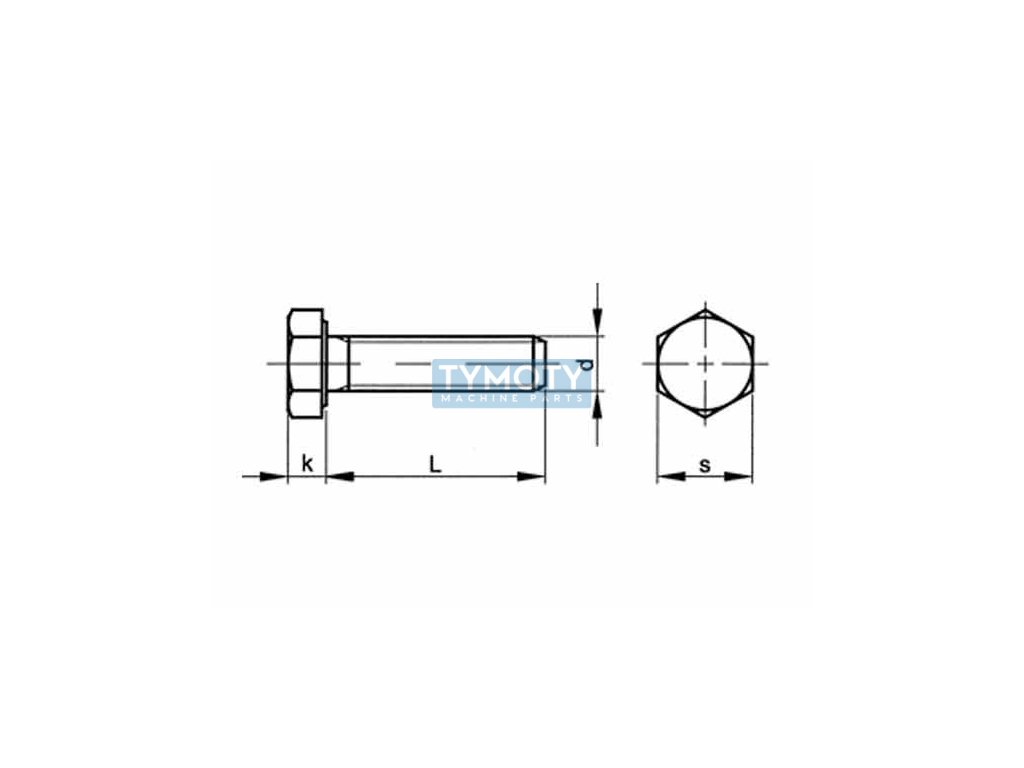

The screw head is hexagonal, with dimensions of the width between the surfaces (s) of 22 mm and the width between the diagonals (e) of 24.49 mm, which allows the use of standard tools for assembly. The head height (k) is 8.8 mm, which provides sufficient space for the application of torque.

The screw material is steel of strength class 10.9, which means that the screw has a high tensile strength and is suitable for demanding applications where high mechanical resistance is required. The screw is not equipped with any surface treatment, which is suitable for applications where additional corrosion protection is not required or where subsequent surface treatment is planned according to specific project requirements.

This screw is ideal for applications where high joint strength and precise adjustment are required, such as machine construction, the automotive industry or other technical equipment requiring reliable and precise connection of components.
