Hexagon screw full thread DIN 961 M12x1.50x60-10.9
Code: 838563
Product detailed description

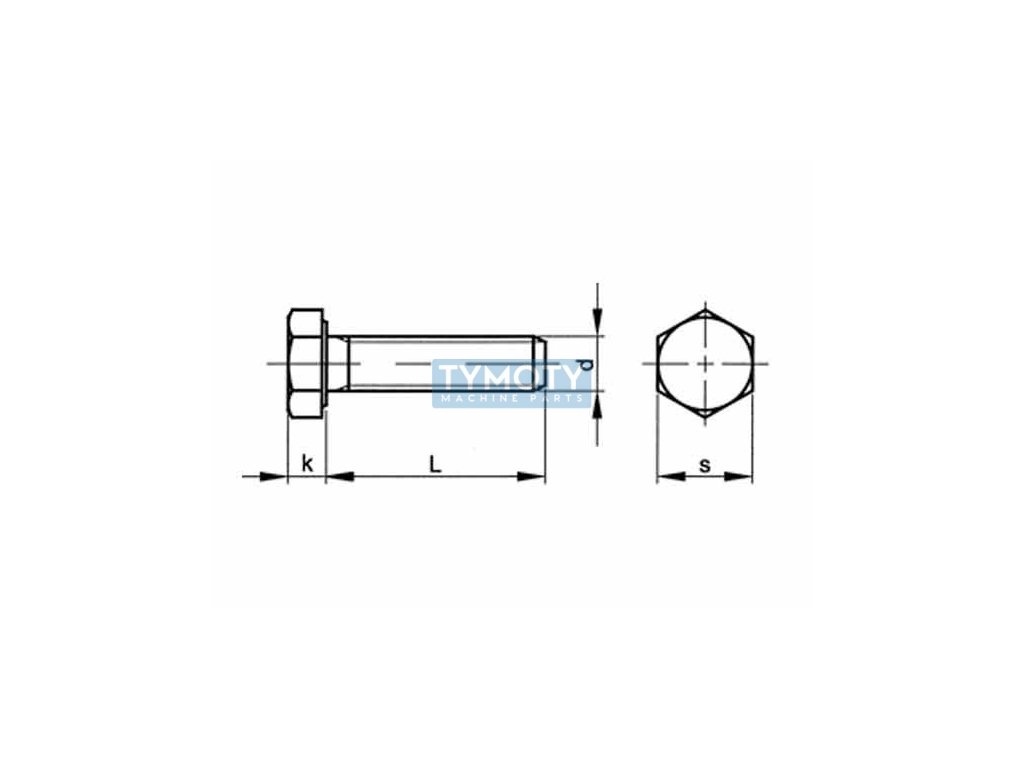

The screw with a hexagonal head, full thread and fine metric thread is designed according to the DIN 961 standard, which is equivalent to the ČSN 021101 and ISO 8765 standards. This screw is made of steel of strength class 10.9, which means that it has a high tensile strength, namely at least 1040 MPa, and is suitable for applications where high mechanical properties and reliability of connections are required.The thread diameter is M12 with a fine pitch of 1.50 mm, which allows for precise adjustment and a solid connection in applications where higher resistance to vibrations and dynamic loads is required. The total length of the screw is 60 mm. The hexagonal head has a width between the surfaces (s) of 19 mm and a width between the diagonals (e) of 21.1 mm, while the head height (k) is 7.5 mm.
The screw is supplied without surface treatment, which means that it is not protected against corrosion and is suitable for use in environments where it is not exposed to aggressive chemical influences or moisture. This type of screw is ideal for precise and strong connections in engineering and construction, where high strength and accuracy of adjustment are required.
Additional parameters
| Category: | Fasteners > hexagon head screws > fine full thread DIN 961 > steel 10.9 without treatment |
|---|---|
| Weight: | 0.063 kg |
| EAN: | 4043952312612 |
| CSN standard: | 021103 |
| Diameter D (mm): | M12x1,50 |
| DIN standard: | 961 |
| Fortress class: | 10,9 |
| Head shape: | hexagonal |
| Height k (mm): | 7,5 |
| ISO standard: | ~8676 |
| Length L (mm): | 60 |
| Material: | steel |
| Pitch: | 1,50 |
| Surface finish: | without modification |
| Thread type: | metric fine |
| Width e (mm): | 21,1 |
| Width s (mm): | 19 |
