Hexagon screw full thread DIN 961 M10x1.25x35-10.9 galvanized

Product detailed description

The screw with a hexagonal head and full thread according to DIN 961, ISO 8676 and ČSN 021103 is designed for applications requiring precise and strong connections in mechanical engineering and construction. This screw has a metric fine thread with a diameter of M10 and a pitch of 1.25 mm, which allows for higher precision and strength of the connection compared to a standard metric thread. The total length of the screw is 35 mm.

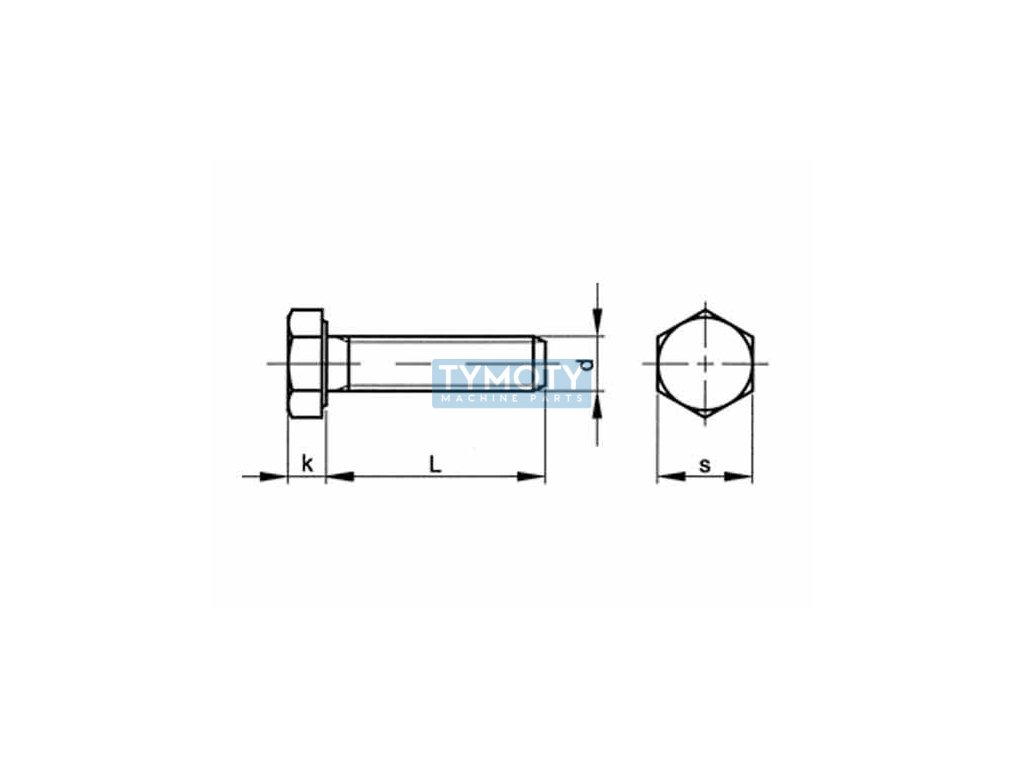

The screw head is hexagonal, with dimensions of the width between the surfaces (s) of 17 mm and the width between the diagonals (e) of 19 mm, which ensures reliable fastening using a standard wrench. The head height (k) is 6.4 mm, which provides sufficient surface area for torque application.

The screw material is steel of strength class 10.9, which means that it has a minimum yield strength of 900 MPa and a minimum tensile strength of 1000 MPa. This high strength class is suitable for applications with higher mechanical demands.

The screw is surface-treated with white zinc plating, which increases its corrosion resistance and extends its service life in harsh conditions. This surface treatment is suitable for both indoor and outdoor use where it is exposed to moisture or chemicals.

Thanks to its technical properties, this screw is ideal for use in precision mechanical assemblies where high strength and corrosion resistance are required.
