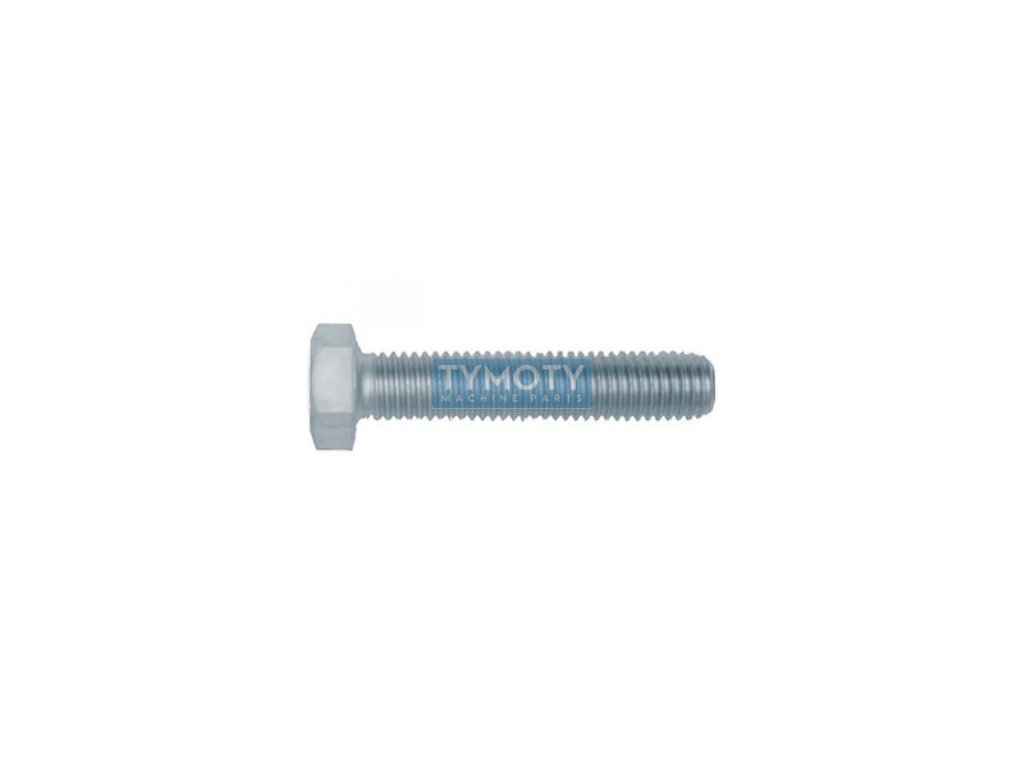

Hexagon screw full thread DIN 933 M8x100-10.9 galvanized
Code: 817439
Product detailed description
ČSN 021103.70 - DIN 933-10.9 ZB M8x100 - steel fastener - screw with hexagonal head and thread to the head, made of steel of strength class 10.9 with white zinc surface treatment, with metric thread M2 with standardAdditional parameters
| Category: | Fasteners > hexagon head screws > full thread DIN 933 > galvanized steel 10.9 |
|---|---|
| Weight: | 0.038 kg |
| EAN: | 4043952706145 |
| CSN standard: | 021103,75 |
| Diameter D (mm): | M8 |
| DIN standard: | 933 |
| EN standard: | 24017 |
| Fortress class: | 10,9 |
| Head shape: | hexagonal |
| Height k (mm): | 5,3 |
| ISO standard: | 4017 |
| Length L (mm): | 100 |
| Material: | steel |
| Pitch: | 1,25 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width e (mm): | 14,38 |
| Width s (mm): | 13 |
