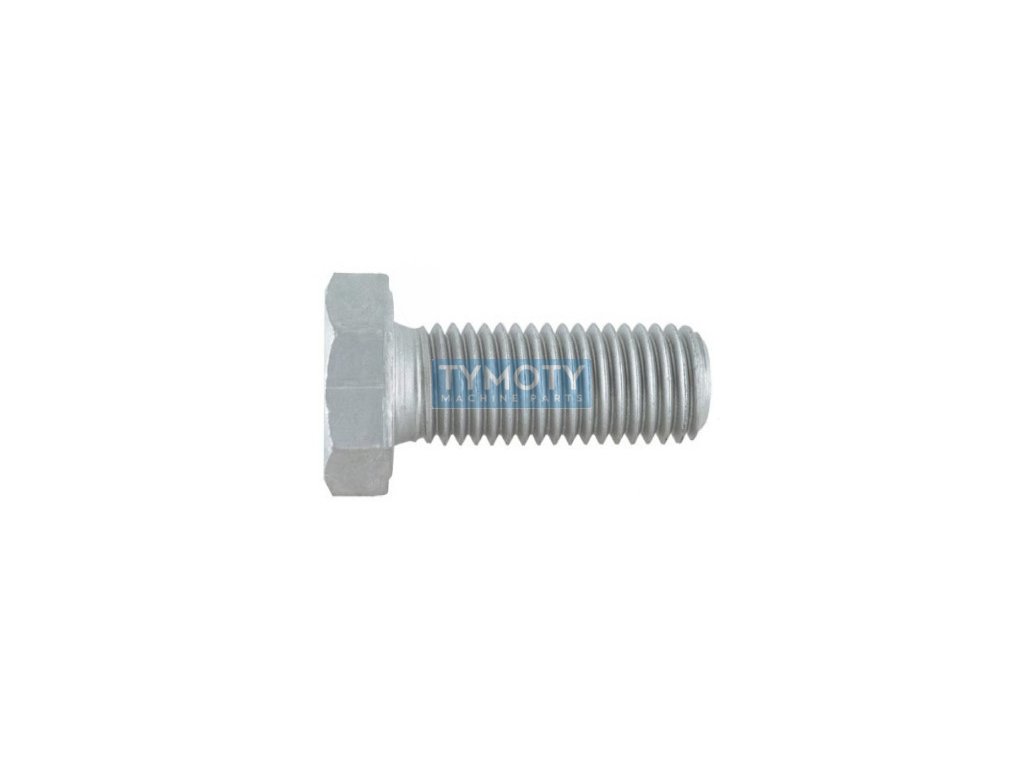

Hexagon screw full thread DIN 933 M16x30-8.8 hot-dip galvanized

Code: 816765

Not rated

0,46 € –8 %

Hexagon screw full thread DIN 933 M16x30-8.8 hot-dip galvanized

0,46 € –8 % 0,42 € / pcs 0,51 € incl. VAT

In stock ()

Delivery to: 06/08/2025 Delivery offer

Hexagon head screw, full thread M16x30-8.8 933 ČSN 021103.59 ISO 4017

Detailed information

Product detailed description

ČSN 021103.59 - DIN 933-8.8 TZN M16x30 - steel fastener - screw with hexagonal head and thread to the head, made of steel of strength class 8.8 with hot-dip zinc surface treatment, with metric thread M16 with standard

Additional parameters

Category:	Fasteners > hexagon head screws > full thread DIN 933 > hot-dip galvanized steel 8.8
Weight:	0.078 kg
EAN:	4043952270271
CSN standard:	021103,59
Diameter D (mm):	M16
DIN standard:	933
EN standard:	24017
Fortress class:	8,8
Head shape:	hexagonal
Height k (mm):	10
ISO standard:	4017
Length L (mm):	30
Material:	steel
Pitch:	2,00
Surface finish:	red hot zinc
Thread type:	metric
Width e (mm):	26,75
Width s (mm):	24
