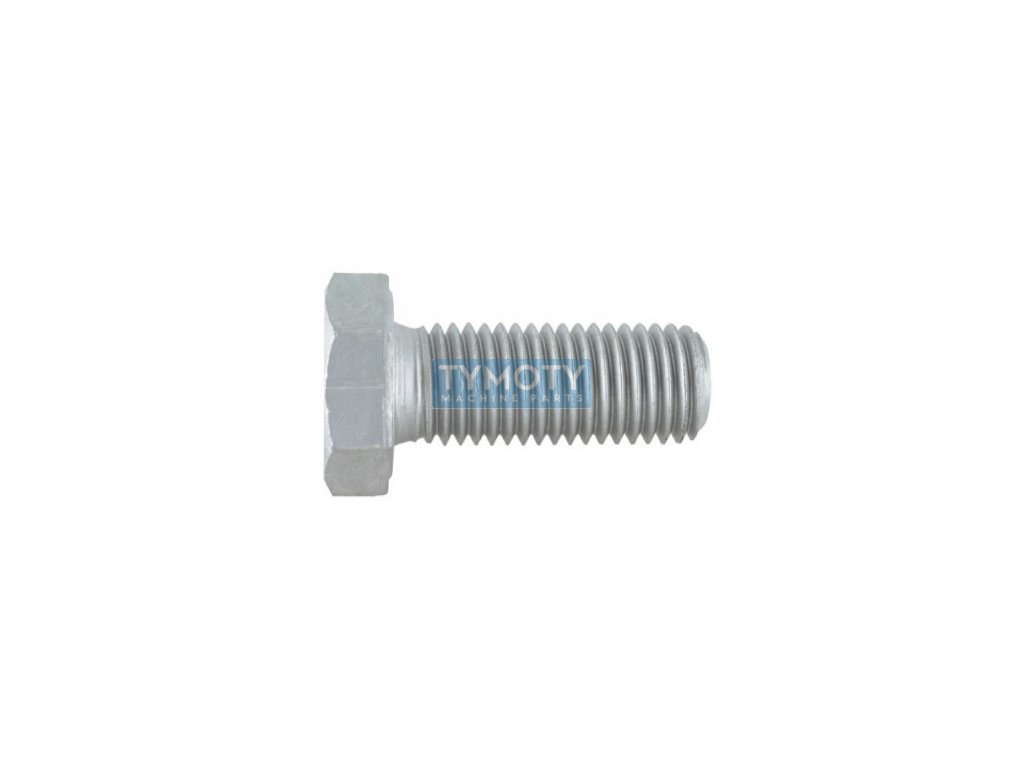

Hexagon screw full thread DIN 933 M16x25-8.8 hot-dip galvanized
Code: 816764
Product detailed description
ČSN 021103.59 - DIN 933-8.8 TZN M16x25 - steel fastener - screw with hexagonal head and thread to the head, made of steel of strength class 8.8 with hot-dip zinc surface treatment, with metric thread M16 with standardAdditional parameters
| Category: | Fasteners > hexagon head screws > full thread DIN 933 > hot-dip galvanized steel 8.8 |
|---|---|
| Weight: | 0.07 kg |
| EAN: | 4043952270264 |
| CSN standard: | 021103,59 |
| Diameter D (mm): | M16 |
| DIN standard: | 933 |
| EN standard: | 24017 |
| Fortress class: | 8,8 |
| Head shape: | hexagonal |
| Height k (mm): | 10 |
| ISO standard: | 4017 |
| Length L (mm): | 25 |
| Material: | steel |
| Pitch: | 2,00 |
| Surface finish: | red hot zinc |
| Thread type: | metric |
| Width e (mm): | 26,75 |
| Width s (mm): | 24 |
