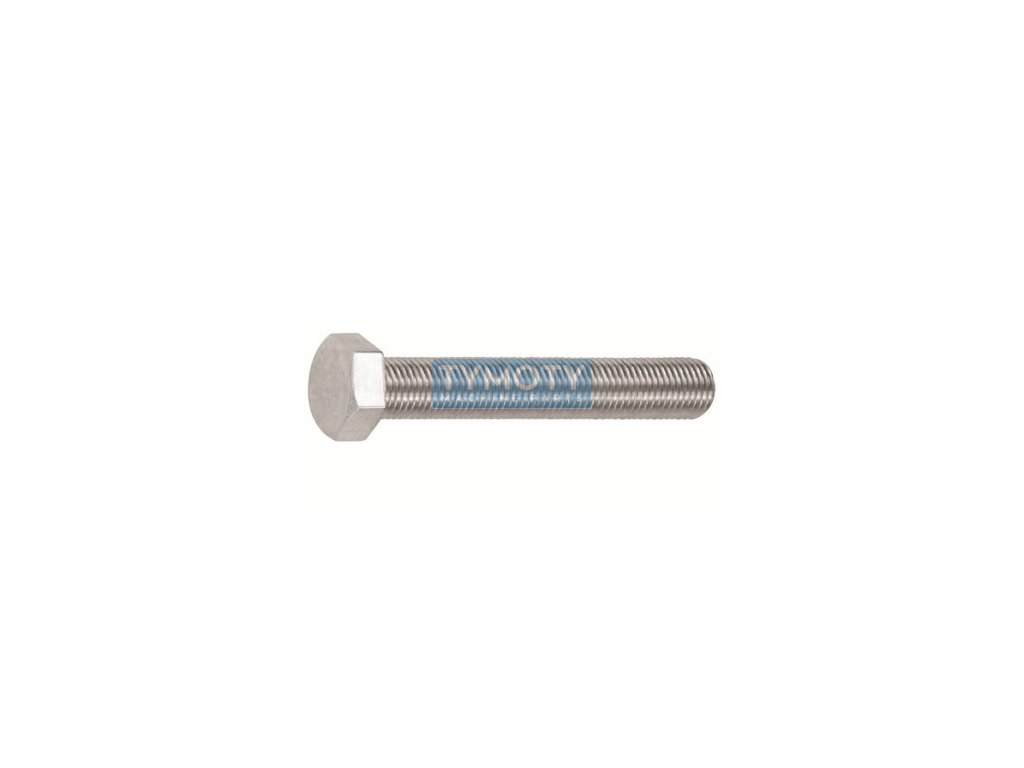

Hexagon screw full thread DIN 933 M10x20 stainless steel A4-80
Code: 891290
Product detailed description
ČSN 021103 - DIN 933-A4-80 M10x20 - stainless steel fastener - screw with hexagonal head and thread to the head, made of A4 stainless steel, strength class 80, with M10 metric thread with standard pitch 1.0.Additional parameters
| Category: | Fasteners > hexagon head screws > full thread DIN 933 > stainless steel A4-80 |
|---|---|
| Weight: | 0.023 kg |
| EAN: | 4043952281215 |
| CSN standard: | 021103 |
| Diameter D (mm): | M10 |
| DIN standard: | 933 |
| EN standard: | 24017 |
| Fortress class: | A4-80 |
| Head shape: | hexagonal |
| Height k (mm): | 6,4 |
| ISO standard: | ~4017 |
| Length L (mm): | 20 |
| Material: | stainless steel |
| Pitch: | 1,50 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width e (mm): | 18,9 |
| Width s (mm): | 17 |
