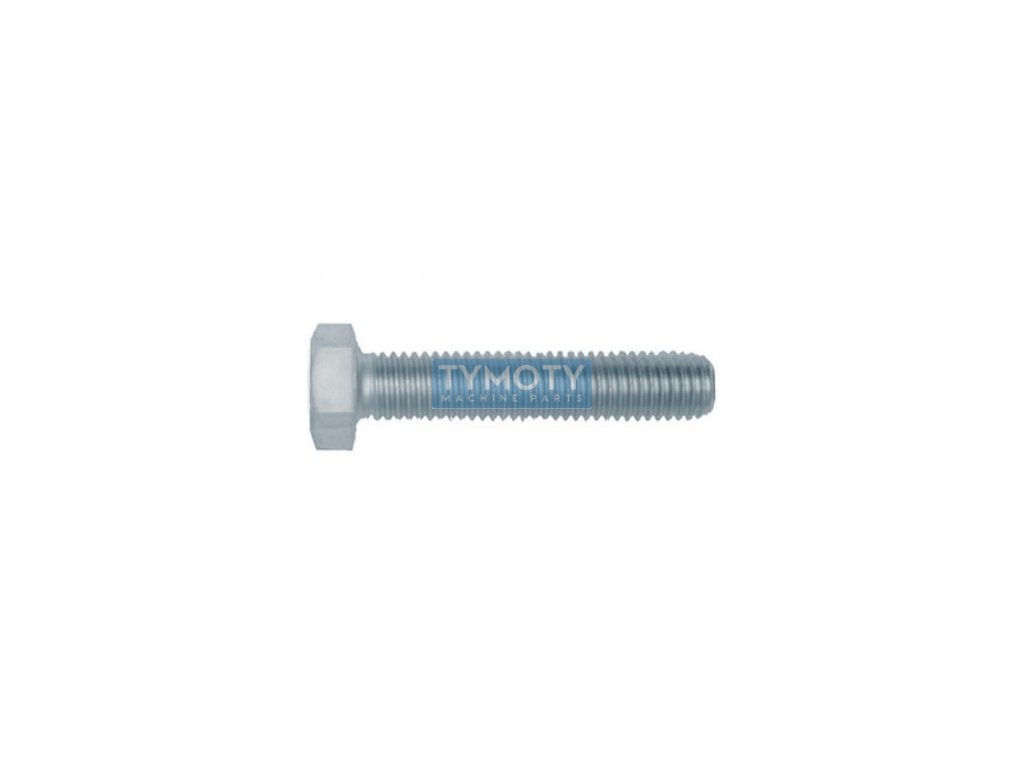

Hexagon screw full thread DIN 933 M10x100-5.8 galvanized
Code: 814921
Product detailed description
ČSN 021103.25 - DIN 933-5.8 ZB M10x100 - steel fastener - screw with hexagonal head and thread to the head, made of steel of strength class 5.8 with white zinc surface treatment, with metric thread M10 with standardAdditional parameters
| Category: | Fasteners > hexagon head screws > full thread DIN 933 > galvanized steel 5.8 |
|---|---|
| Weight: | 0.061 kg |
| CSN standard: | 021103 |
| Diameter D (mm): | M10 |
| DIN standard: | 933 |
| EN standard: | 24017 |
| Fortress class: | 5,8 |
| Head shape: | hexagonal |
| Height k (mm): | 6,4 |
| ISO standard: | ~4017 |
| Length L (mm): | 100 |
| Material: | steel |
| Pitch: | 1,50 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width e (mm): | 18,9 |
| Width s (mm): | 17 |
