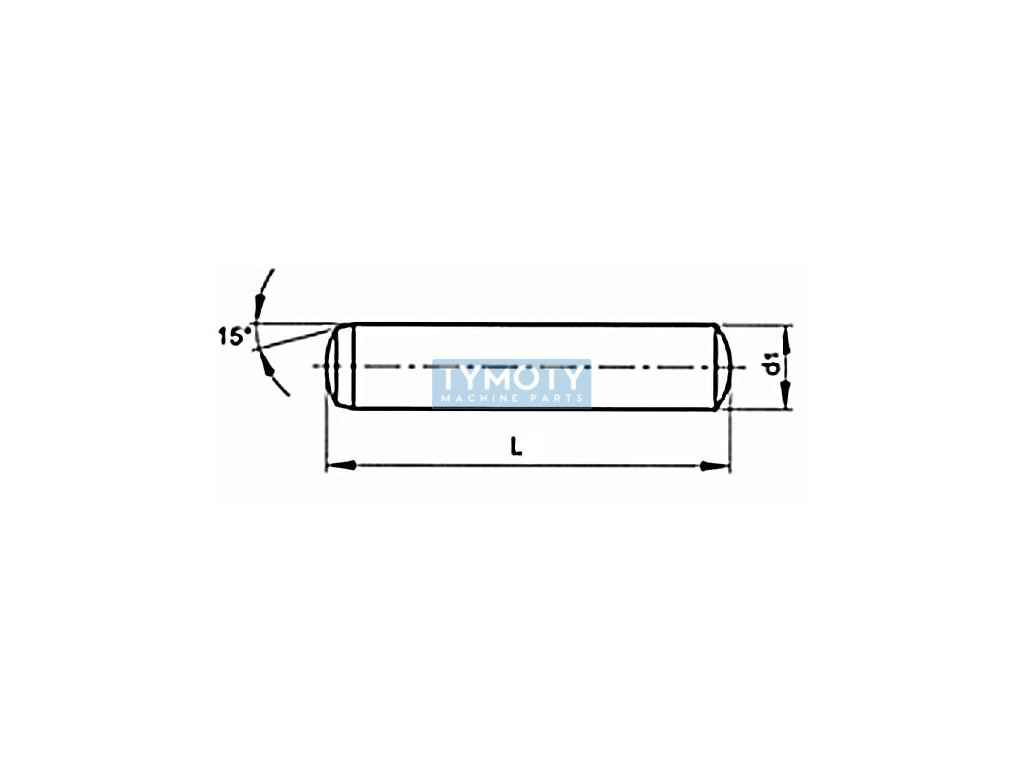

Hardened cylindrical pin DIN 6325 6x90 m6

Product detailed description

The hardened cylindrical pin according to DIN 6325 with dimensions 6x90 mm and tolerance m6 is a precisely ground component made of hardened steel. This type of pin is designed for use in applications where high accuracy, strength and the possibility of repeated disassembly of the joint are required. Pins are often used in mechanical assemblies, where they serve as guiding elements or to fix the position of components relative to each other.

The material from which the pin is made is steel with a hardness of approximately HRC60, which guarantees its wear resistance and long service life even in demanding conditions. Hardening of the steel increases its strength and resistance to deformation, which is key to maintaining the accuracy of the joint throughout its entire period of use.

The tolerance m6 means that the pin has precisely defined dimensions that allow its use in precise mechanical joints, where there is minimal clearance between the pin and the hole in which it is placed. This tolerance is in accordance with ISO 8734, which is the international equivalent of DIN 6325.

DIN 6325 pins are often used in mechanical engineering, the automotive industry and other industries where high precision and reliability of connections are required. Their use includes, for example, the assembly of machines, tools and equipment, where it is important to ensure accurate and solid connection of individual parts.
