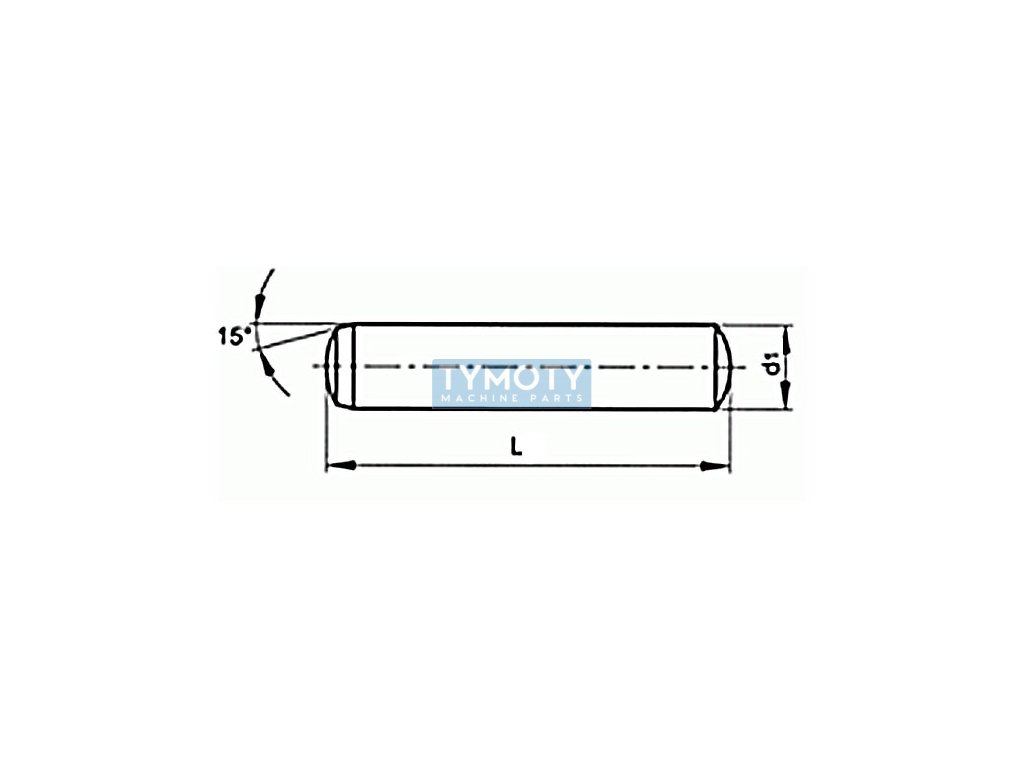

Hardened cylindrical pin DIN 6325 3x8 m6

Product detailed description

The hardened cylindrical pin according to DIN 6325 with dimensions 3x8 mm and tolerance m6 is a precisely ground component made of hardened steel. This pin is designed for highly precise, strong and repeatedly detachable connections in mechanically stressed assemblies. Due to its design and material properties, it is ideal for applications where high wear resistance and connection accuracy are required.

The pin is made of steel with a hardness of approximately HRC60, which guarantees its long service life and resistance to deformation. The tolerance m6 ensures an exact fit in the hole, which minimizes play and increases the stability of the connection. This type of pin is often used in mechanical engineering, the automotive industry and other industries where it is necessary to ensure reliable and precise connection of components.

Pins according to DIN 6325 are comparable to ISO 8734, which allows their use in international applications. Their standardized dimensions and features simplify selection and integration into existing systems. This pin is suitable for applications where high assembly accuracy and repeatability are required, while its hardened surface treatment provides additional protection against corrosion and mechanical wear.
