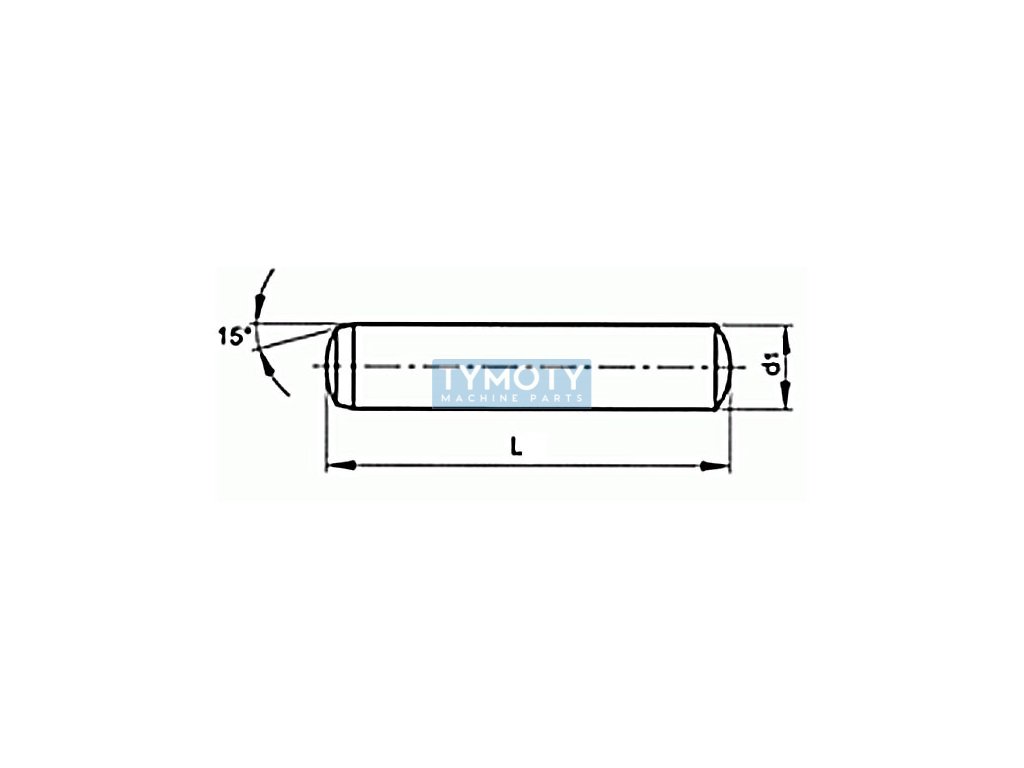

Hardened cylindrical pin DIN 6325 14x32 m6

Product detailed description

The cylindrical pin hardened according to DIN 6325 with dimensions 14x32 mm and tolerance m6 is a precisely ground component made of hardened steel. This pin is designed for use in applications where high precision and strength of joints are required, while allowing repeated disassembly without loss of connection quality.

The pin has a diameter of 14 mm and a length of 32 mm, and its surface treatment is hardened to a hardness of approximately HRC60. This level of hardness ensures wear resistance and long service life even in harsh conditions. The tolerance m6 means that the pin is manufactured with very precise dimensional tolerances, which is important when mounting in precisely machined holes, where it is necessary to minimize clearance and ensure a solid connection.

Pins according to DIN 6325 are often used in engineering and in the production of mechanical assemblies, where high precision and reliability are required. They are suitable for applications where high stresses occur, such as rotating joints or joints exposed to dynamic loads. Due to their design and material properties, they are ideal for use in repeatedly dismountable joints, which allows for easy maintenance and servicing of mechanical systems.
