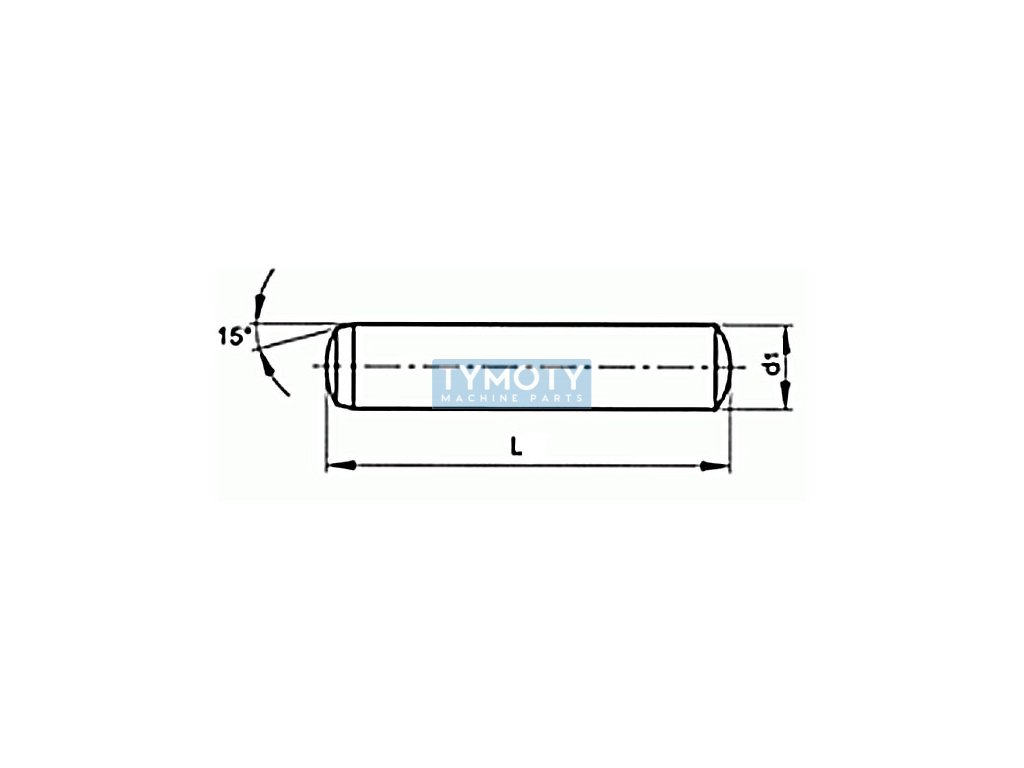

Hardened cylindrical pin DIN 6325 10x100 m6

Product detailed description

The cylindrical pin hardened according to DIN 6325 with dimensions 10x100 mm and tolerance m6 is a precisely ground component made of hardened steel. This pin is designed for use in applications where high precision and strength of connections are required, which are also repeatedly disassembled. The pin material is hardened steel with a hardness of approximately HRC60, which guarantees high wear resistance and long service life even under intense mechanical stress.

Cylindrical pins according to DIN 6325 are often used in mechanical engineering and precision mechanics for fixing and centering parts in assemblies where precise position and minimal clearance are required. The tolerance m6 ensures a tight fit in the hole, which contributes to the stability and reliability of the connection. The pin with dimensions of 10 mm diameter and 100 mm length is suitable for applications where a longer length of the connecting element is required.

This type of pin is also compatible with the ISO 8734 standard, which allows its use in international applications and ensures compliance with global standards. Due to its properties, it is ideal for use in demanding industrial conditions where high precision and reliability of connections are required.
