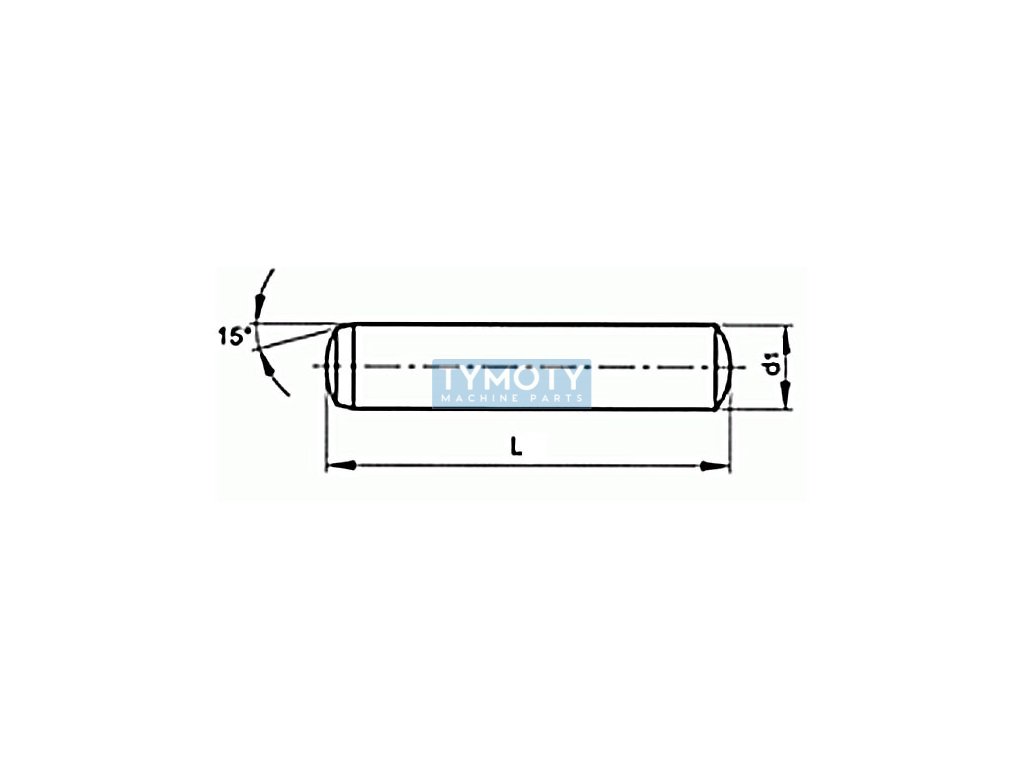

Hardened cylindrical pin DIN 6325 1.5x10 m6

Product detailed description

The hardened cylindrical pin according to DIN 6325 with dimensions 1.5x10 mm and tolerance m6 is a precisely ground connecting element made of hardened steel. This component is designed for use in applications where highly precise, strong and repeatedly detachable joints are required. Thanks to hardening, the steel reaches a hardness of approximately HRC60, which ensures high wear resistance and long service life even in demanding conditions.

Pins according to DIN 6325 are often used in mechanical assemblies where it is necessary to ensure the exact position of components relative to each other. The tolerance m6 means that the pin has precisely defined dimensions with minimal deviations, which is critical for applications requiring high accuracy. This tolerance ensures that the pin will fit tightly in the hole, minimizing the risk of unwanted movements or loosening of joints.

The pin is compatible with ISO 8734 and ČSN 022152, which allows its use in international projects and guarantees its interchangeability with components according to these standards. Thanks to its properties, it is ideal for use in mechanical engineering, the automotive industry and other areas where high demands are placed on the accuracy and reliability of connections.
