Flexible pin DIN 1481-6x90

Product detailed description

The spring pin according to DIN 1481 with dimensions of 6 x 90 mm is a hollow cylindrical connecting element with a longitudinal slot, which is designed for flexible and safe securing of parts in mechanical assemblies. This type of pin is made of spring steel, which gives it high resistance to dynamic loads and the ability to absorb vibrations and shocks.

The design of the pin with a slot allows it to be compressed during assembly, thereby achieving a firm fit in the hole. When released, the pin expands and creates a firm connection, ensuring stability and preventing unwanted movement of the connected parts. This mechanism is ideal for applications where frequent disassembly and reassembly is required, while minimizing wear on the holes.

The pin complies with DIN 1481, which is equivalent to ISO 8752, and is classified as heavy duty, meaning it is suitable for demanding applications with higher load requirements. Typical applications include mechanical assemblies where reliable and repeatable locking of components such as shafts, bearings or gears is required.

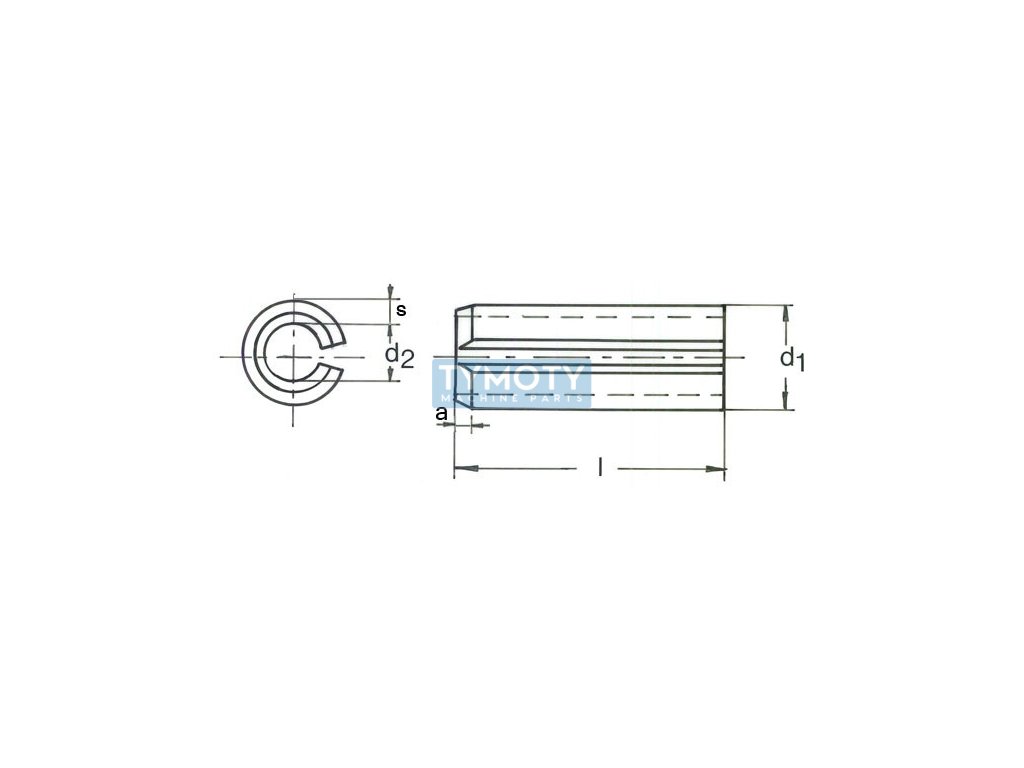

Its dimensions of 6 x 90 mm indicate the diameter and length of the pin, with the 6 mm diameter being the nominal diameter before compression. This pin is suitable for holes with a precisely defined tolerance to achieve optimal functionality and service life of the connection.
