Flexible pin DIN 1481-4x24 stainless steel A1

Product detailed description

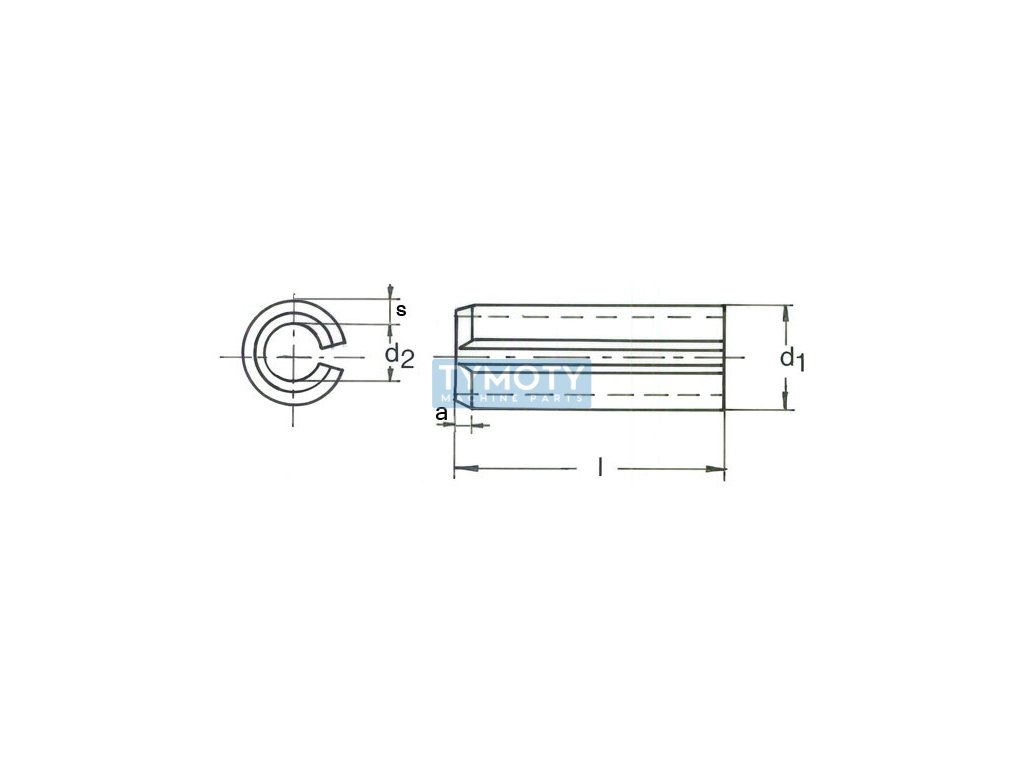

The DIN 1481 spring pin with dimensions 4 x 24 mm is made of stainless steel grade A1, specifically 1.4310. This component is designed as a hollow cylindrical connecting element with a longitudinal slot, which allows its spring properties. Spring pins are commonly used to secure parts in mechanical assemblies, where it is necessary to ensure a safe and reliable connection, which at the same time allows a certain amount of movement or springiness.

The pin has a diameter of 4 mm and a length of 24 mm, which makes it suitable for applications where components with smaller dimensions need to be connected. The grade A1 stainless steel from which the pin is made provides excellent corrosion resistance, which is important for applications in environments with higher humidity or chemical exposure. The material 1.4310 is known for its high strength and elasticity, which guarantees long-term reliability of the connection even under dynamic loads.

Spring pins according to DIN 1481 are comparable to ISO 8752, but are characterized by a heavier design. This type of fastener is ideal for applications where quick assembly and disassembly without the use of special tools is required, while ensuring a solid connection without the risk of loosening. Thanks to its slotted design, the pin is compressed during installation, which allows for easy insertion into the hole and subsequent expansion, which ensures a firm hold.
