Flexible pin DIN 1481-21x80

Product detailed description

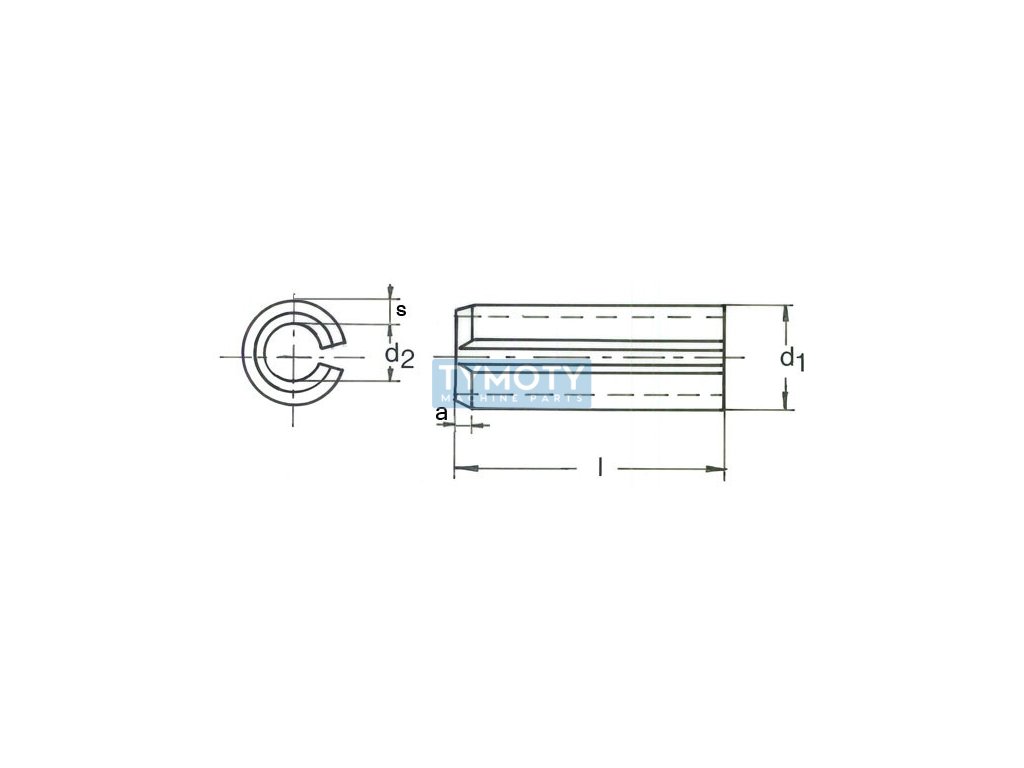

The DIN 1481 spring pin with dimensions of 21 x 80 mm is a hollow cylindrical connecting element designed for flexible and secure locking of parts in mechanical assemblies. This type of pin is characterized by its longitudinal slot, which allows its flexibility and ability to absorb vibrations and shocks. The slot ensures that the pin is slightly compressed during installation, creating permanent pressure against the walls of the hole into which it is inserted, which increases its stability and locking ability.

The DIN 1481 pins are made of high-quality spring steel, which guarantees their high strength and resistance to mechanical wear. These pins are suitable for use in applications where reliable locking of parts is required, such as rotating mechanisms, gearboxes or other dynamically stressed assemblies. Their design makes them ideal for use in situations where frequent disassembly and reassembly of components is required, while maintaining their properties even after multiple cycles of use.

The 21 x 80 mm pin is designed for holes with a diameter of 21 mm, while its length of 80 mm provides sufficient contact area to ensure stability and strength of the connection. This type of pin is widely used in various industries, including the automotive, engineering and manufacturing industries, where high reliability and durability of fasteners are required.
