Flexible pin DIN 1481-2.5x20

Product detailed description

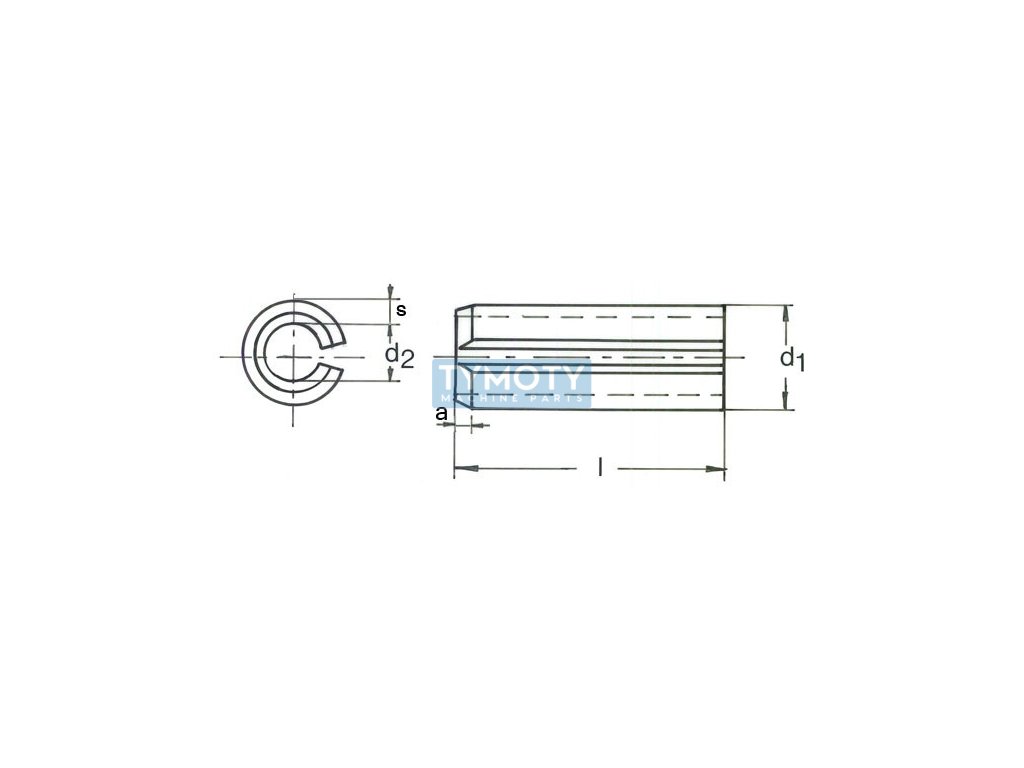

The DIN 1481 spring pin with dimensions 2.5 x 20 mm is a hollow cylindrical connecting element designed for flexible and secure securing of parts in mechanical assemblies. This type of pin is characterized by its longitudinal slot, which allows its flexibility and ability to absorb vibrations and dynamic loads, thereby increasing the reliability and service life of the connection.

The DIN 1481 pins are made of spring steel, which provides high strength and wear resistance. Spring steel is a special type of steel that has high elasticity and is able to return to its original shape after deformation. This property is key for applications where repeated loading and unloading of joints is required.

The 2.5 x 20 mm pins are suitable for applications where it is necessary to connect parts with smaller dimensions and where the accuracy and stability of the connection are important. They are used in various industries, including automotive, mechanical engineering and equipment manufacturing, where they are exposed to various mechanical loads.

Comparable to ISO 8752, these pins are often used in situations where a quick and effective connection is required without the need for additional fasteners. Their installation is simple and does not require special tools, which reduces assembly time and costs.
