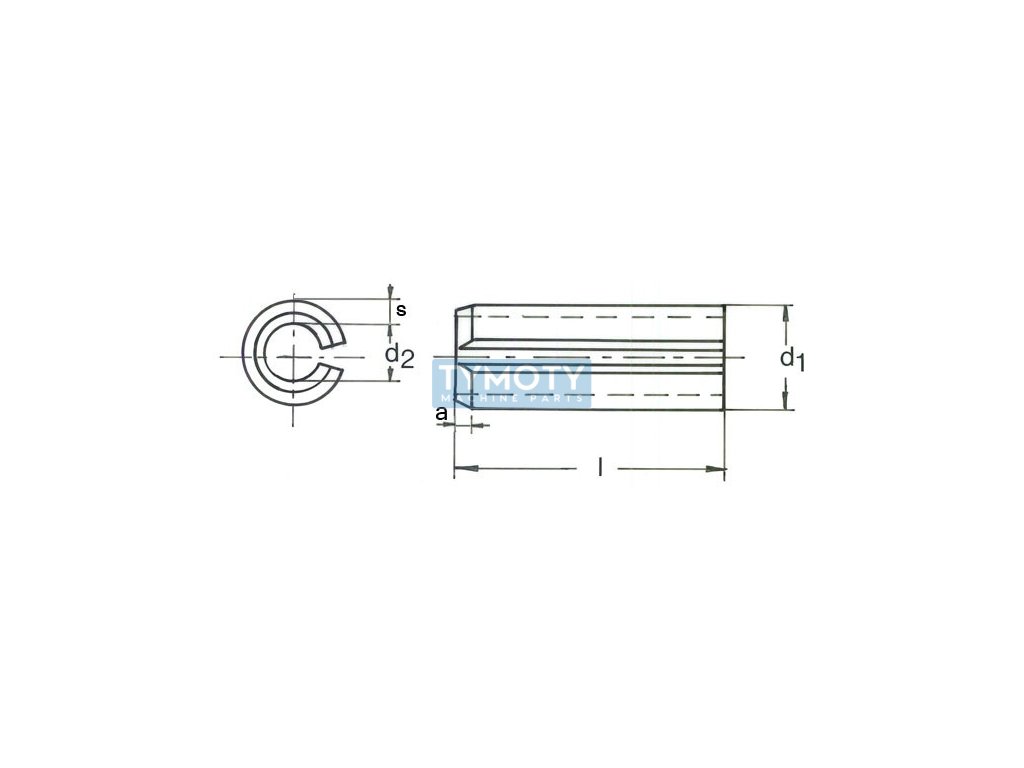

Flexible pin DIN 1481-14x55

Product detailed description

The DIN 1481-14x55 spring pin is a hollow cylindrical connecting element designed for flexible and secure securing of parts in mechanical assemblies. This component is manufactured according to the DIN 1481 standard, which specifies the dimensions and material properties for spring pins with a longitudinal slot.

The pin has a diameter of 14 mm and a length of 55 mm, which makes it suitable for use in applications where reliable securing of parts with the ability to absorb vibrations and dynamic loads is required. The longitudinal slot allows the pin to deform flexibly during assembly, ensuring a firm fit in the hole. This property is crucial for applications where it is necessary to compensate for hole tolerances or where thermal expansion of materials is expected.

The material from which the pin is made is usually high-strength steel, which ensures long service life and wear resistance. Surface treatment may include phosphating or zinc plating, which increases corrosion resistance and improves overall reliability in harsh operating conditions.

DIN 1481 spring pins are widely used in engineering, the automotive industry and in various mechanical assemblies, where it is necessary to ensure reliable connection of parts with the possibility of their repeated disassembly and assembly without loss of functionality.
