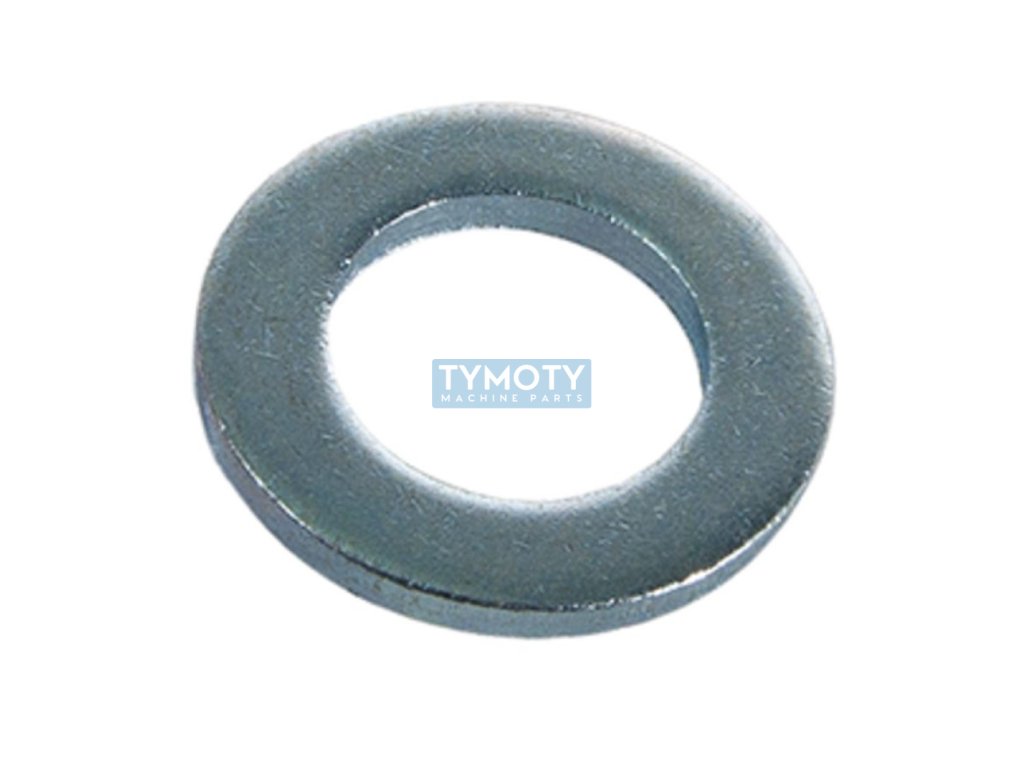

Flat washer DIN 125A M8 / 8.4 galvanized

Product detailed description

The DIN 125A M8 flat washer is made of steel with a zinc-plated surface, which provides increased corrosion resistance. This washer is chamfer-free, which means that its edges are straight and not chamfered, which increases its contact surface during use. The washer complies with DIN 125A, ISO 7089 and ČSN 021702 standards, which guarantees its compatibility and standardization within international and national technical regulations.

The dimensions of the washer are as follows: the inner diameter (d1) is 8.4 mm, the outer diameter (d2) is 16 mm and the thickness (s) is 1.6 mm. These dimensions are optimized for use with M8 metric bolts and nuts, with the inner diameter allowing for precise seating on the threaded portion of the fastener.

The washer has a hardness of 100 HV (Vickers hardness), which is suitable for applications where medium mechanical resistance is required. The white zinc coating not only improves the aesthetic appearance, but above all provides corrosion protection, thus extending the life of the washer in harsh conditions.

This washer is ideal for use in various industries where it is necessary to ensure even pressure distribution under the bolt or nut head, thereby reducing the risk of damage to the material to which the fastener is attached. It is suitable for applications where reliability and durability of the joints are required.
