Flat washer DIN 125A M8 / 8.4

Product detailed description

The DIN 125A M8 flat washer is made of steel with a hardness of 100 HV, which corresponds to the Vickers hardness scale. This washer is uncoated, which means that it is not protected against corrosion and is suitable for use in environments where it is not exposed to aggressive chemicals or moisture.

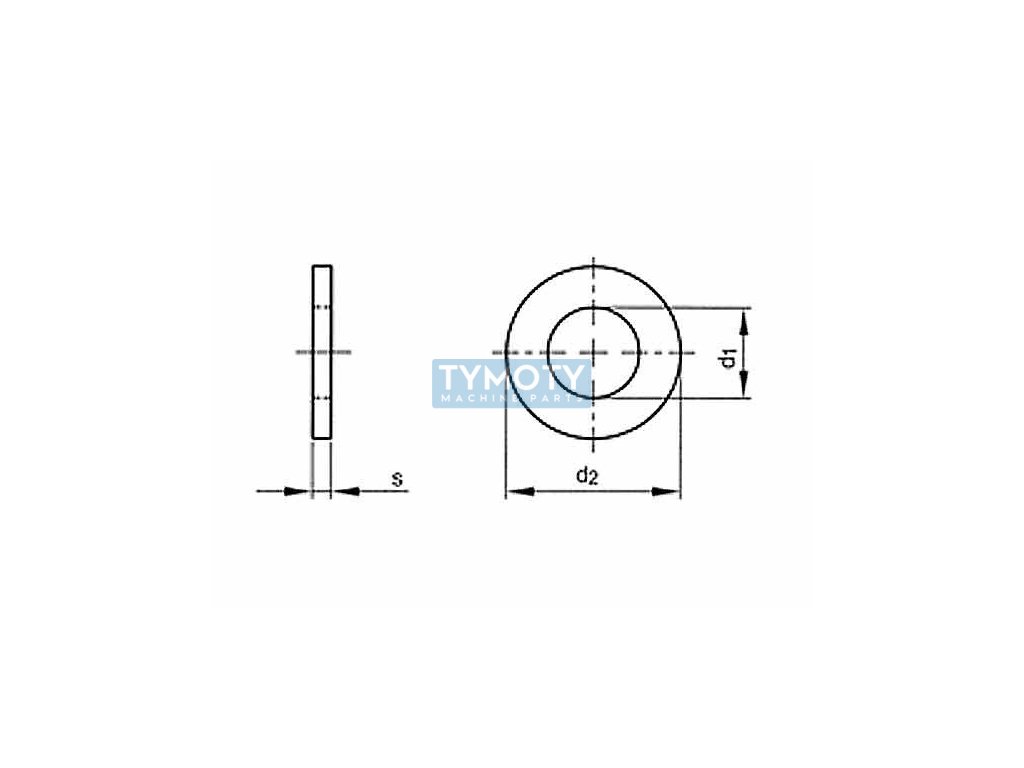

The washer has an outer diameter of 16 mm, an inner diameter of 8.4 mm and a thickness of 1.6 mm. These dimensions are in accordance with DIN 125A, ISO 7089 and ČSN 021702, which define the standards for flat washers without chamfer.

The use of this washer is common in mechanical engineering and construction, where it serves to distribute the pressure of a bolt or nut over a larger area, thereby reducing the risk of damage to the surface of the material to which it is attached. It is suitable for bolts with a metric thread M8.

With its chamfer-free design, it is ideal for applications where it is necessary to ensure even distribution of forces without additional load on the edges of the washer. This washer is part of the fastener group, where it is often used in combination with other fasteners to achieve a strong and stable connection.
