Flat washer DIN 125A M7 / 7.4

Product detailed description

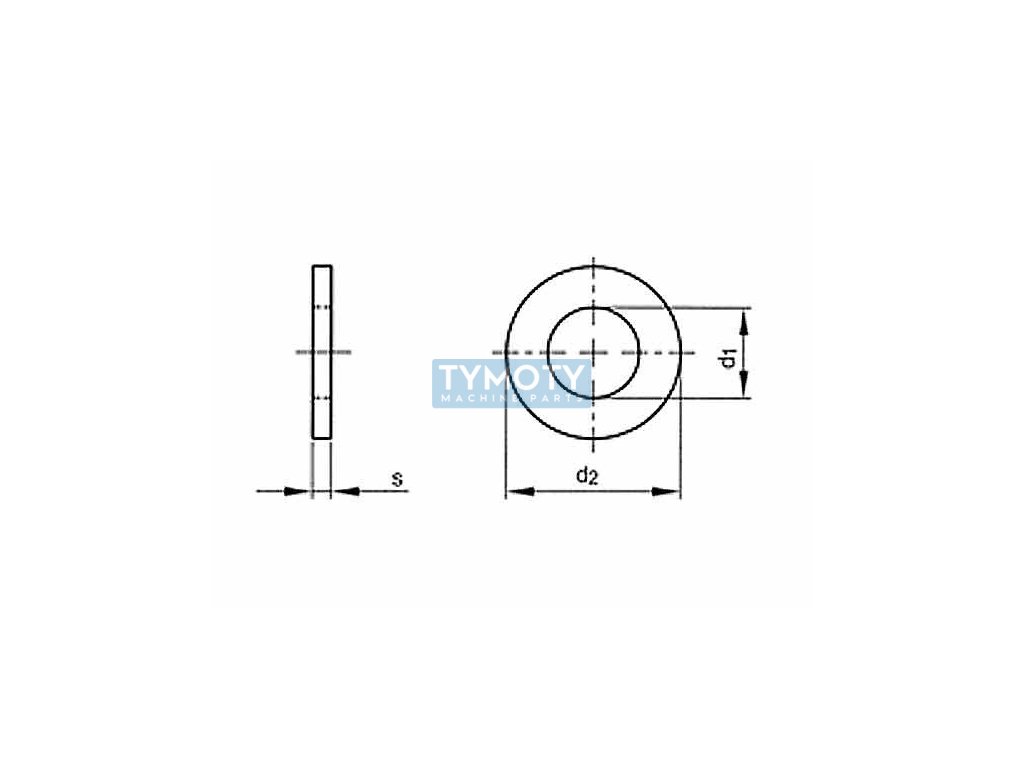

The flat washer according to DIN 125A, ISO 7089 and ČSN 021702 is intended for use in connection applications where it is necessary to evenly distribute the load of a screw or nut over a larger area. This washer has an outer diameter of 14 mm and an inner diameter of 7.4 mm, which makes it suitable for use with M7 threads. The thickness of the washer is 1.6 mm, which provides sufficient strength and stability in the connection.

The material from which the washer is made is steel with a hardness of 100 HV. A hardness of 100 HV means that the washer has sufficient resistance to deformation when applying normal mechanical loads. Uncoated steel indicates that the washer is not protected against corrosion, which is important to consider when using it in environments with high humidity or in corrosive conditions.

The washer has no chamfer, which is in accordance with the DIN 125A standard, which defines flat washers without chamfered edges. This design feature allows the washer to effectively distribute the load and minimize the risk of damage to the surface to which it is applied. Washers of this type are commonly used in mechanical engineering, construction and other industries where it is necessary to ensure a reliable and strong connection.
