Flat washer DIN 125A M48 / 50.0 galvanized

Product detailed description

The DIN 125A M48 flat washer is a structural component intended for use in fastening applications where it is necessary to evenly distribute the load under the head of a bolt or nut. This washer is made of steel with a white zinc coating, which provides increased corrosion resistance and increases its service life in environments with normal humidity.

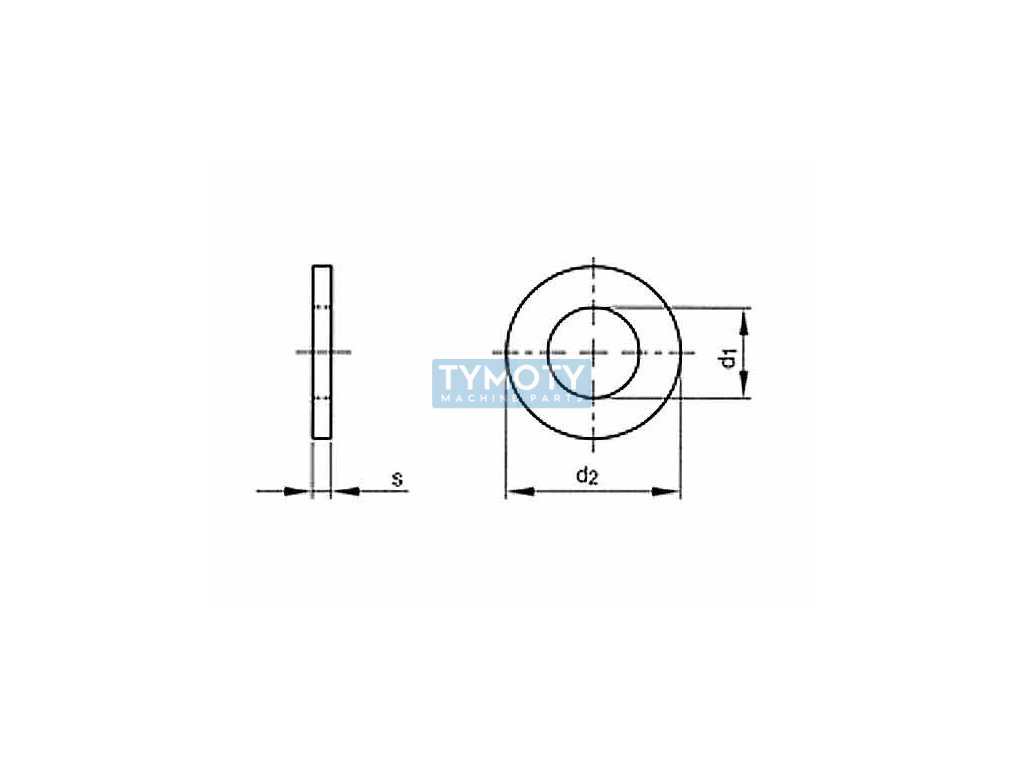

The washer has an outer diameter (d2) of 92 mm and an inner diameter (d1) of 50 mm, which makes it compatible with M48 threads. The thickness of the washer (width s) is 8 mm, which ensures sufficient strength and stability in the application. The material hardness is 100 HV (Vickers hardness), which is a value that ensures an optimal balance between strength and elasticity of the material.

The washer is manufactured according to DIN 125A, which is equivalent to ISO 7089 and ČSN 021702. These standards define dimensions and tolerances for flat washers without chamfer, which means that the washer has no chamfered edges and therefore provides maximum contact area.

Due to its dimensions and properties, this washer is ideal for use in industrial applications where it is necessary to ensure a reliable connection and uniform pressure distribution. It is suitable for use in structures, engineering, and other areas where high mechanical properties and corrosion resistance are required.
