Flat washer DIN 125A M27 / 28.0 brass

Product detailed description

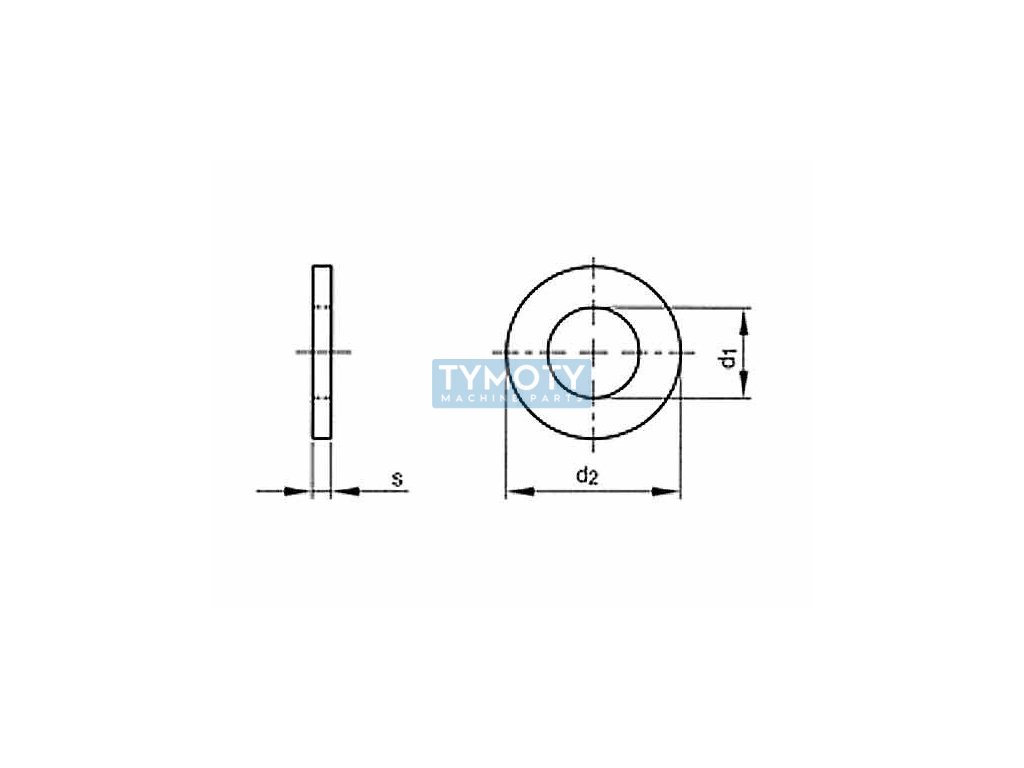

The DIN 125A M27 flat washer is made of brass and meets the standards ČSN 021702, DIN 125A and ISO 7089. This component is intended for applications where it is necessary to evenly distribute the load of the bolted joint. The washer has an outer diameter (d2) of 50 mm, an inner diameter (d1) of 28 mm and a thickness (s) of 4 mm. It is designed for use with bolts with a metric thread M27.

The brass used as a material provides good corrosion resistance, which is advantageous in environments with higher humidity or in cases where electrical conductivity is required. The surface treatment is not applied, which means that the washer retains the natural properties of brass without additional protection or aesthetic modifications.

The washer is chamfer-free, which means that its edges are not chamfered, thus providing maximum contact area between the connecting elements. This type of washer is often used in mechanical assemblies where stability and joint strength are required. It is suitable for a wide range of industrial applications, including mechanical, electrical and construction.
