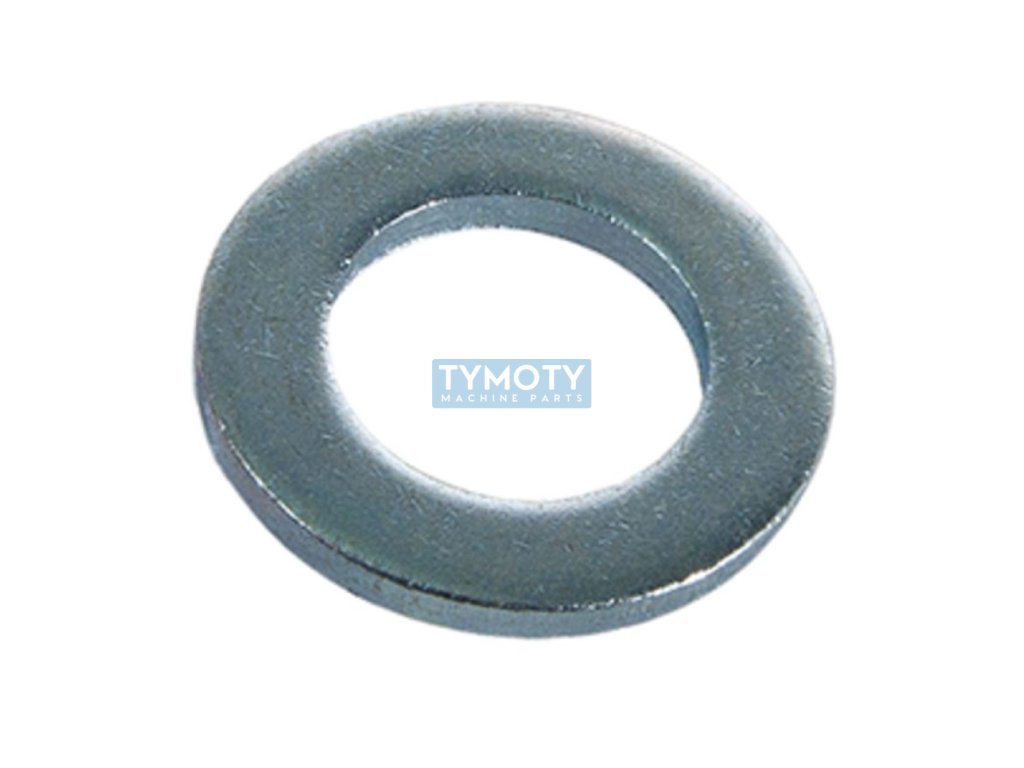

Flat washer DIN 125A M16 / 17.0 300HV galvanized

Product detailed description

The DIN 125A M16 flat washer is a structural element designed to distribute the load under the head of a bolt or nut, thereby increasing stability and reducing the risk of damage to the surface of the fastened material. This washer is made of steel with a hardness of 300 HV, which guarantees its high resistance to mechanical wear and deformation.

The washer has an outer diameter (d2) of 30 mm, an inner diameter (d1) of 17 mm and a thickness (s) of 3 mm, which corresponds to the standardized dimensions for the M16 metric thread. The product is manufactured according to DIN 125A, ISO 7089 and ČSN 021702 standards, which guarantees its compatibility and usability in a wide range of applications in mechanical engineering and construction.

The surface treatment of the washer is carried out by galvanizing, specifically white zinc, which provides protection against corrosion and extends the service life of the component in harsh conditions. The washer is chamfer-free, meaning that its edges are not cut, ensuring maximum contact area with the material being fastened.

This washer is part of the normal A-class product range, indicating its standard quality and reliability for common industrial applications. It is suitable for use in various areas where a strong and stable connection is required, while its properties allow it to be used in environments with higher mechanical demands.
