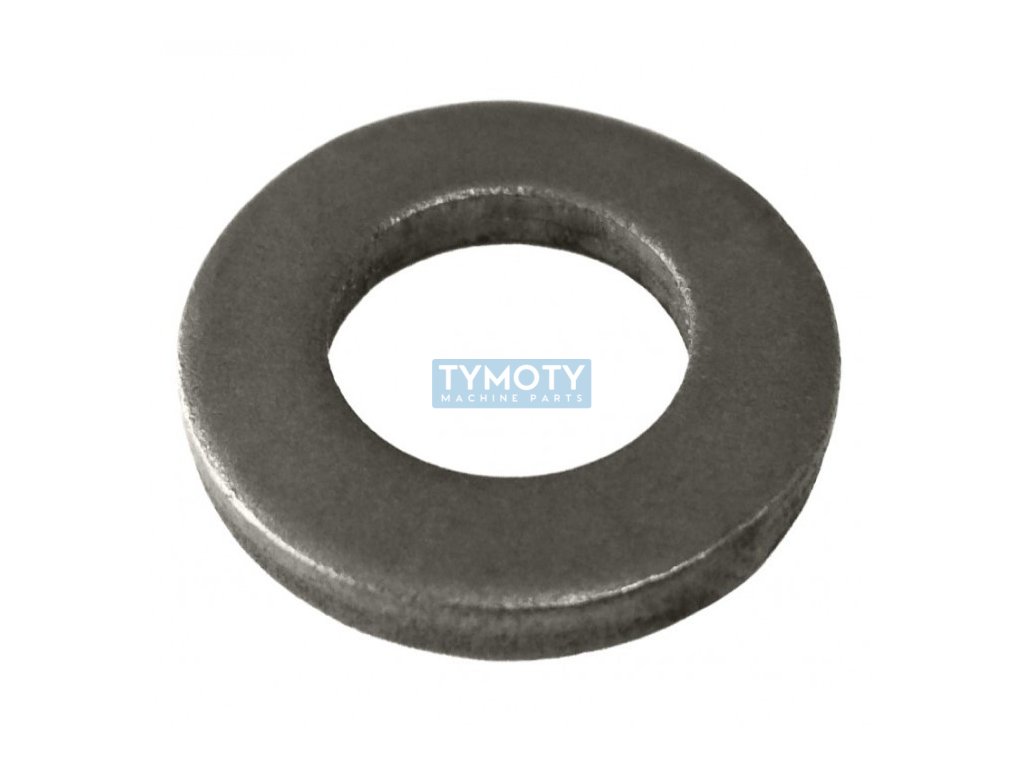

Flat washer DIN 125A M12 / 13.0 300HV
Code: 850141
Product detailed description
The flat washer according to DIN 125A, ISO 7089 and ČSN 021702 is designed for use in fastening applications where it is necessary to distribute the load of a bolt or nut over a larger area. This particular model is designed for bolts with a metric thread M12.The washer has an outer diameter d2 of 24 mm and an inner diameter d1 of 13 mm, while its thickness is 2.5 mm. It is made of steel with a hardness of 300 HV, which guarantees high resistance to deformation under mechanical load. The hardness of 300 HV (Vickers hardness) is suitable for applications where increased resistance to wear and pressure is required.
The washer is supplied without surface treatment, which means that it is suitable for use in environments where additional corrosion protection is not required. It is important to consider the environmental conditions in which the washer will be used to avoid corrosion or other damage.
This washer is part of the normal range and belongs to product class A, which means it meets high standards of quality and precision. It is suitable for various industrial applications where a reliable and durable connection is required.
Additional parameters
| Category: | Fasteners > pads flat > under hexagon DIN 125A, ISO 7089 > steel 300HV without PU |
|---|---|
| Weight: | 0.006 kg |
| EAN: | 4043952503737 |
| CSN standard: | 021702 |
| Diameter D (mm): | M12 |
| Diameter d1 (mm): | 13 |
| Diameter D2 (mm): | 24 |
| DIN standard: | 125A |
| Hardness: | 300HV |
| Height H (mm): | 2,5 |
| ISO standard: | 7089 |
| Material: | steel |
| Surface finish: | without modification |
