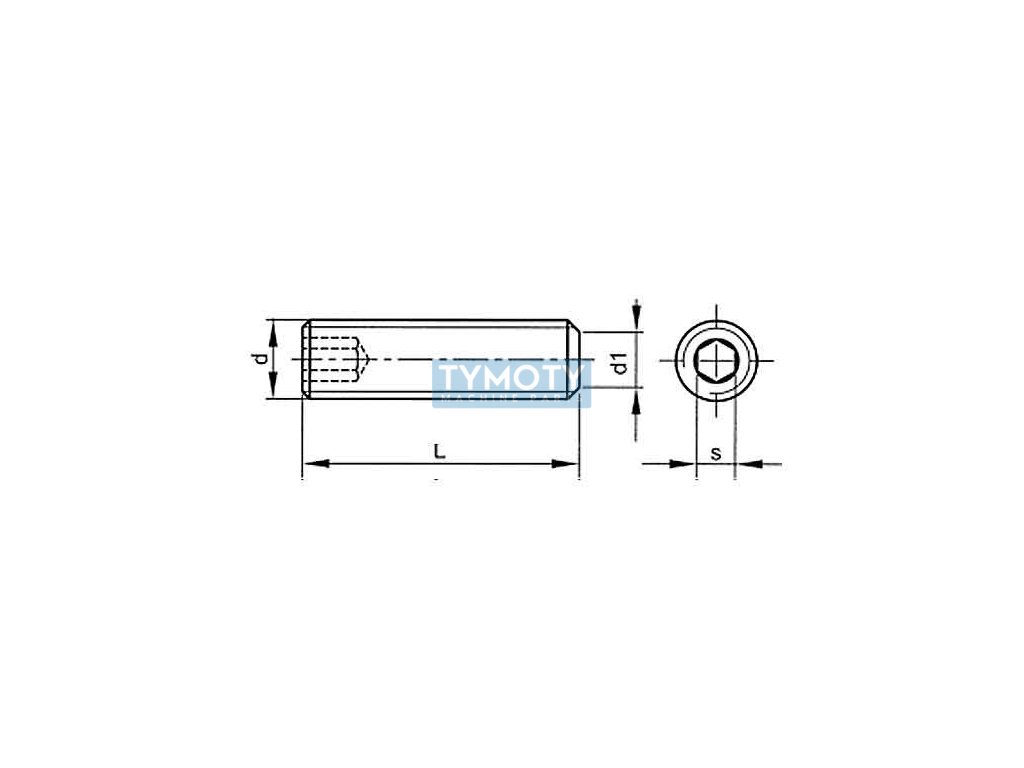

Flat set screw - hex DIN 913 M14x1.00x10

Product detailed description

The flat adjustment screw with internal hexagon, marked according to DIN 913, ISO 4026 and ČSN 021187, is intended for precise adjustment and locking of parts without damaging the contact surface. This component is made of steel grade 45H, which provides high strength and resistance to mechanical stress. The screw has a fine metric thread with dimensions M14x1.00, which means that the outer diameter of the thread is 14 mm and the thread pitch is 1 mm. The total length of the screw is 10 mm.

The internal hexagon (inbus) allows for effective transmission of torque during assembly and disassembly, which is important for precise and safe fastening. The flat end of the screw minimizes the risk of damage to the surface to which the screw is applied, making it ideal for applications where frequent adjustment is required or where surface finish is critical.

This screw is suitable for use in a variety of industries where high precision and reliability are required, such as mechanical engineering, equipment manufacturing and assembly applications. The screw is supplied without surface finish, allowing for further customization to specific application requirements, such as electroplating or other forms of corrosion protection.
