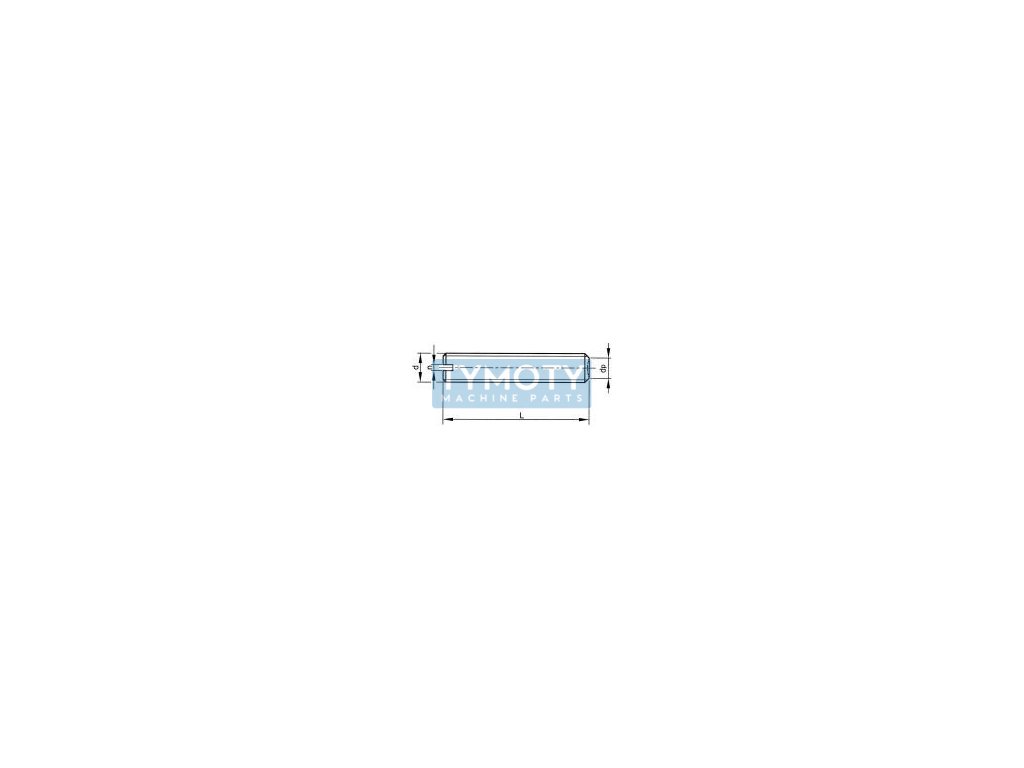

Flat set screw - groove DIN 551 M4x16

Product detailed description

The flat adjusting screw with a groove according to DIN 551, ISO 4766 and ČSN 021181 is intended for applications where precise adjustment or fixing of the position of components is required. This screw is headless, which allows its use in confined spaces where a standard screw head would interfere. The slot for a screwdriver allows easy manipulation and adjustment.

The screw has a metric M4 thread with a diameter of 4 mm and a length of 16 mm. The thread pitch is 0.70 mm, which ensures fine and precise adjustment. The flat end of the screw ensures even pressure distribution on the surface on which it acts, thus minimizing the risk of material damage.

It is made of 14H strength class steel, which guarantees high resistance to mechanical stress. The screw is supplied without surface treatment, which means that it is suitable for use in environments where increased corrosion protection is not required. If necessary, an additional surface treatment can be applied according to the specific requirements of the application.

This screw is ideal for mechanical applications where precise positioning or securing of components is required, such as adjustment mechanisms, mounting of bearings or other moving parts. Due to its design and material properties, it is suitable for a wide range of industrial applications.
