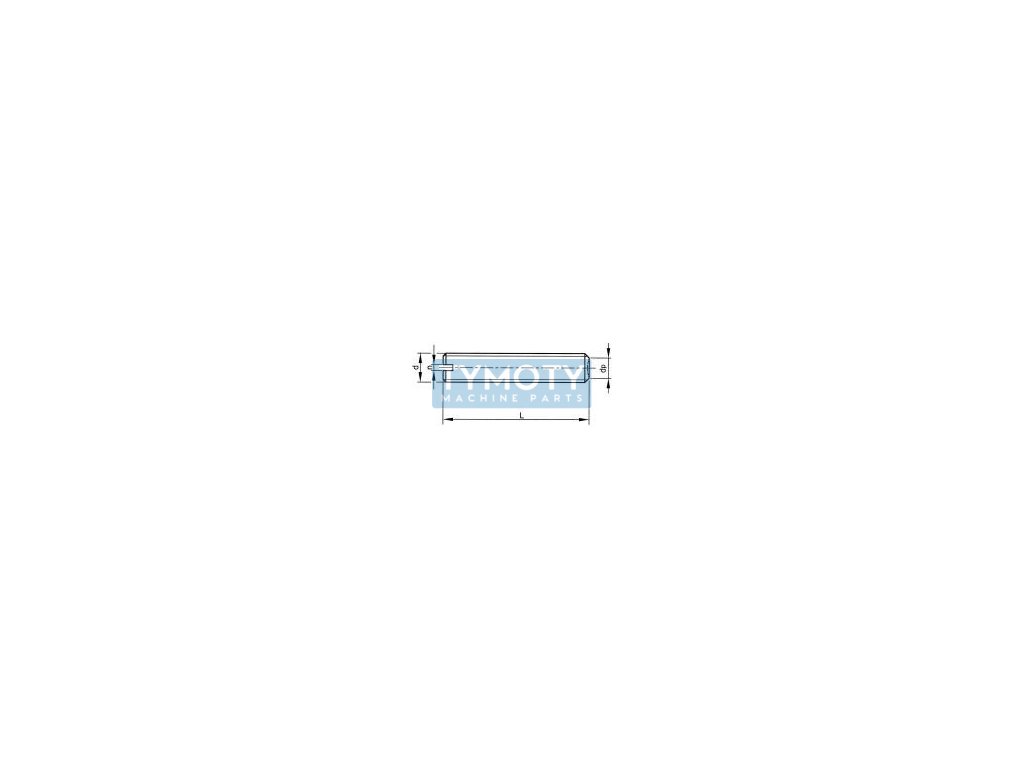

Flat set screw - groove DIN 551 M16x16

Product detailed description

The flat set screw with a groove according to DIN 551, ISO 4766 and ČSN 021181 is a specific connecting element designed for applications requiring precise adjustment and securing the position of components. This type of screw is characterized by a flat end and a continuous groove, which allows easy adjustment with a screwdriver.

The screw has a metric thread with a diameter of M16 and a pitch of 2.00 mm, which ensures compatibility with commonly used metric threads in industrial applications. The groove diameter is 12 mm and the groove width is 8 mm, which provides sufficient support for tools during adjustment.

It is made of steel with a strength class of 14H, which means that the screw has high strength and resistance to mechanical stress. The surface treatment is not applied, which is suitable for applications where additional corrosion protection is not required, or where further surface treatment is required according to specific requirements.

This screw is ideal for use in mechanical engineering and other technical areas where precise adjustment of components is required without the use of a screw head, thus minimizing the height above the surface and increasing the aesthetic value and functionality of the assembly.
