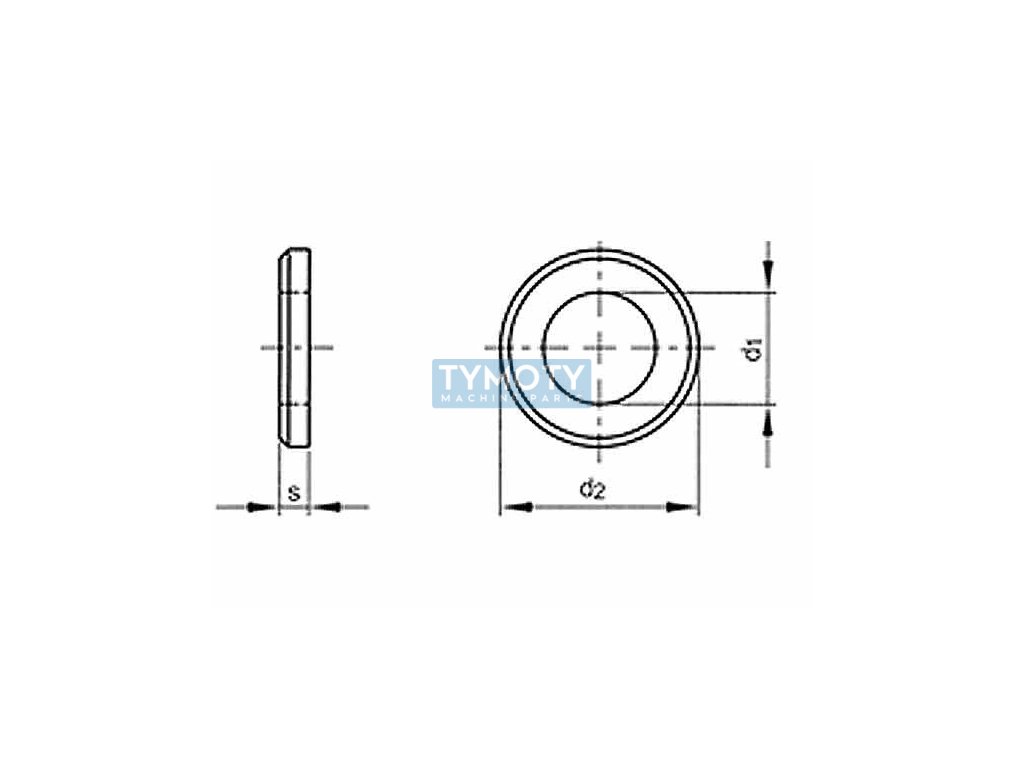

Flat beveled washer DIN 125B M60 / 62.0 galvanized
Code: 850282
Product detailed description
Flat washer, chamfered, DIN 125B M60 / 62.0, galvanizedAdditional parameters
| Category: | Fasteners > pads flat > hex chamfered DIN 125B, ISO 7090 > galvanized steel 100HV |
|---|---|
| Weight: | 0.407 kg |
| EAN: | 4043952047927 |
| CSN standard: | 021702 |
| Diameter D (mm): | M60 |
| Diameter d1 (mm): | 62 |
| Diameter D2 (mm): | 110 |
| DIN standard: | 125B |
| Hardness: | 100HV |
| Height H (mm): | 9 |
| ISO standard: | 7090 |
| Material: | steel |
| Surface finish: | zinc white |
