Flanged housing, slin. bronze SB 16/20/16x24/2
Code: 309242
Product detailed description

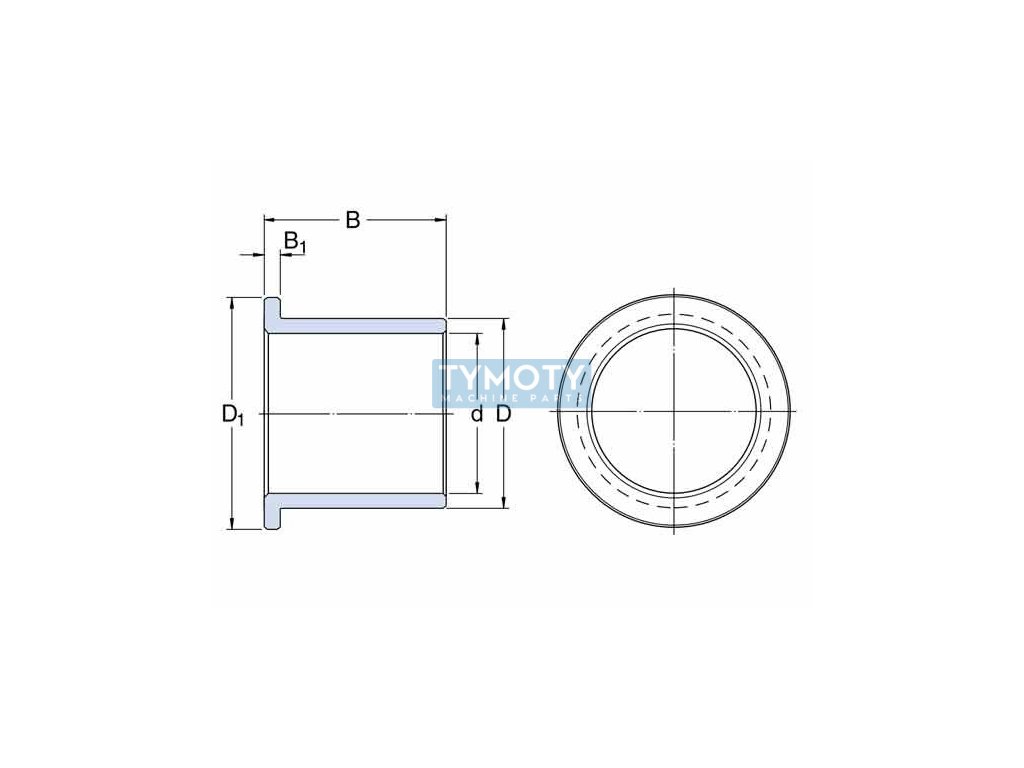

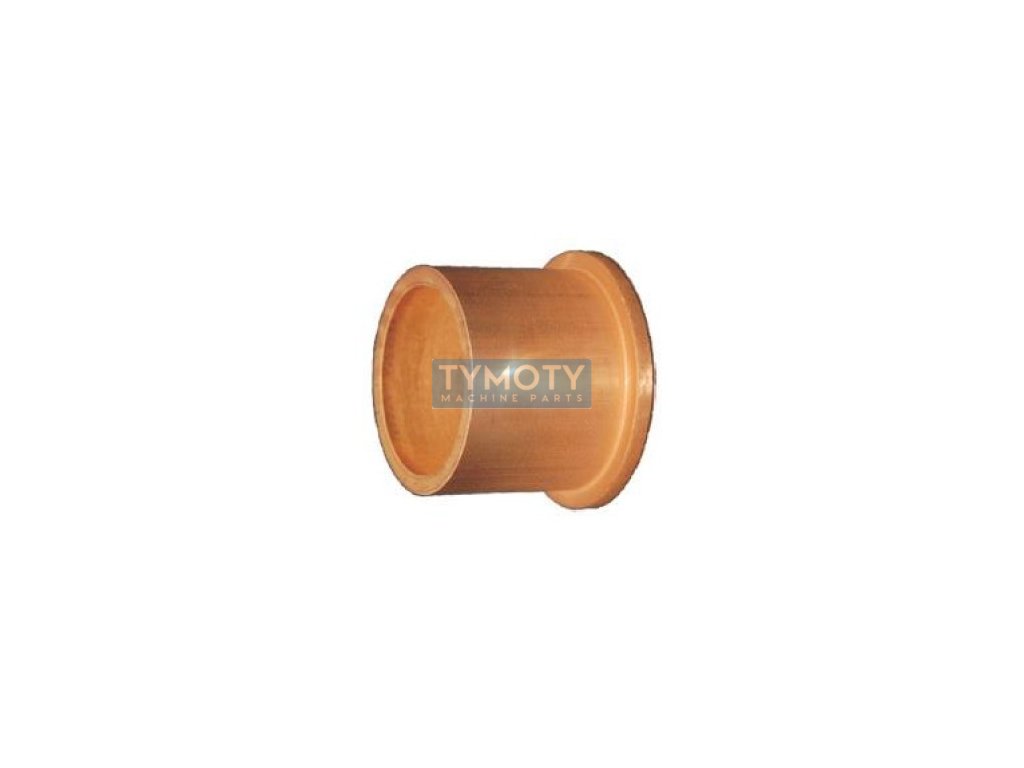

SB 16/20/16x24/2 is a sliding flange bushing made of sintered bronze. Sintered bronze is a porous material with a pore volume of approximately 28%, which are filled with mineral oil. Therefore, the bushing is suitable for use in maintenance-free applications at temperatures from -10 to +100 °C.Additional parameters
| Category: | Bearings > slippery > flanged bushings > sintered bronze |
|---|---|
| Weight: | 0.024 kg |
| Diameter D (mm): | 20, 16 |
| Diameter d1 (mm): | 24 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | OTHER |
| Material: | sintered bronze |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Width B (mm): | 16 |
| Width B1 (mm): | 2 |
| Značení: | SB 16/20/16x24/2 |
| Typ: | kluzné pouzdro |
