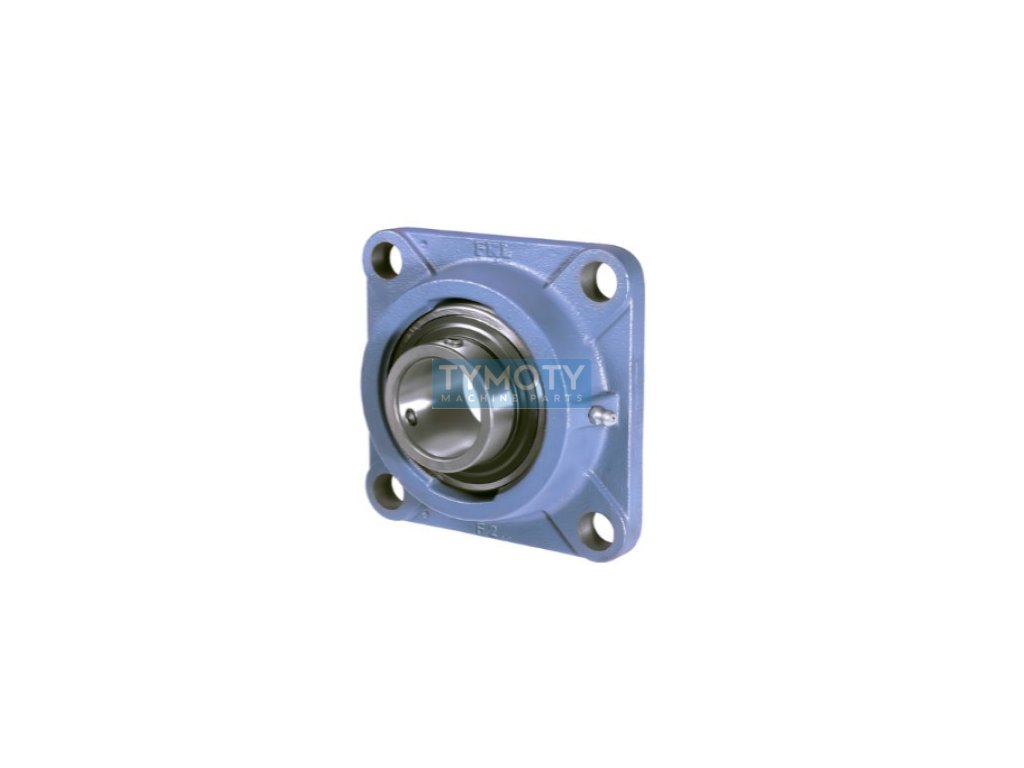

FKL LEF 216-2F flange bearing unit
Code: 387161
Product detailed description
The FKL LEF 216-2F flange bearing unit is designed for applications requiring reliable and precise mounting of rotating components. This unit consists of a cast iron housing type F 216 and a LE 216-2F bearing, and is equipped with four bolt holes, which allows for a firm attachment to various structural surfaces.The bearing unit has a cylindrical profile hole with a diameter of 80 mm, which is suitable for standard shafts in industrial applications. The overall length of the unit is 208 mm, while the bolt hole spacing is 165 mm, which ensures stable mounting and minimizes vibrations during operation.
The width of the unit is 81.6 mm, with additional dimensions A1 and A2 of 54.5 mm and 22 mm, which provides sufficient space for assembly and maintenance. The N pitch of 23 mm allows compatibility with various types of mounting systems.
The manufacturer FKL is known for its reliability and quality, which guarantees a long service life and high resistance of the unit to mechanical wear. This flange bearing unit is ideal for use in various industries, including engineering, manufacturing and maintenance, where precise and stable support of rotating shafts is required.
Additional parameters
| Category: | Bearings > bearing units > with Y bearings > quadrangular > ?.200 bed with screws (FY..TF, FYJ..TF, RCJY, LEF,UCF) > 216 |
|---|---|
| Weight: | 7.5 kg |
| Diameter D (mm): | 80 |
| Hole profile: | cylindrical |
| Length L (mm): | 208 |
| Manufacturer's brand: | FKL |
| Pitch J (mm): | 165 |
| Spacing N (mm): | 23 |
| Width A (mm): | 81,6 |
| Width A1 (mm): | 54,5 |
| Width A2 (mm): | 22 |
| Značení: | LEF 216 |
| Typ: | ložisková jednotka |
