FKL AGRO IL50-98/4T-M24 bearing for disc gates
Code: 388922
Product detailed description

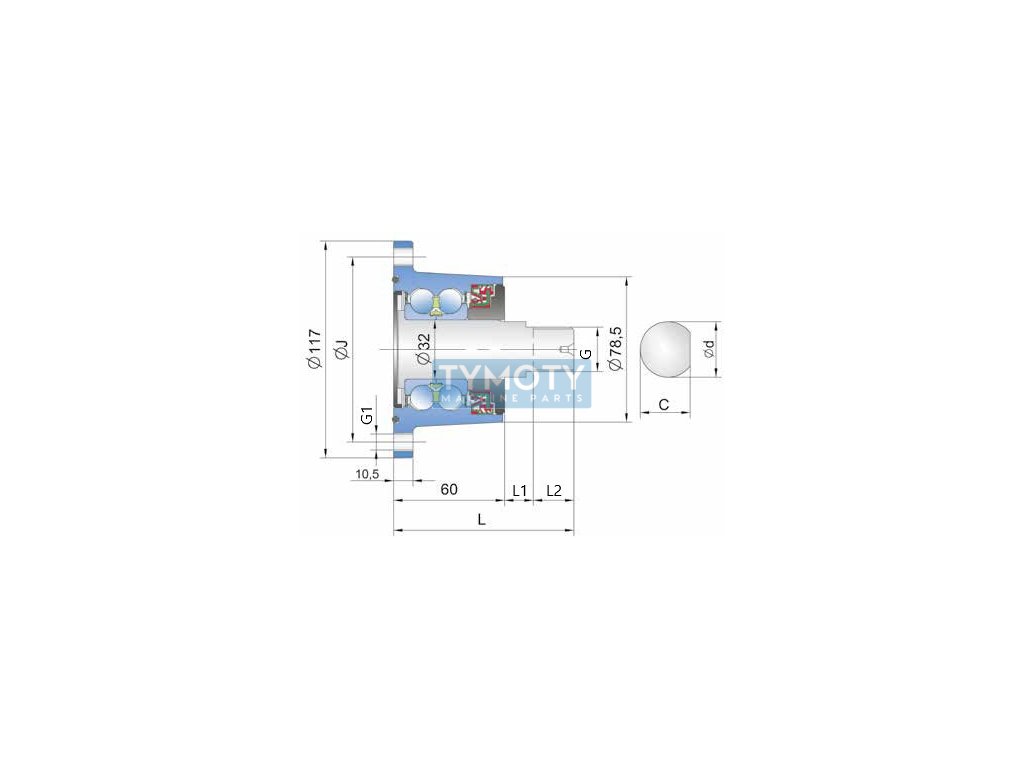

FKL AGRO POINT IL50-98/4T-M24 - bearing unit - disc holder for disc harrows with four holes with M12x1.25 threads and M24x2 thread on the shaft. Can be used as a replacement for: FKL IL2-117-M24-H SKF BAA-0005Additional parameters
| Category: | Bearings > agricultural > for disk gates |
|---|---|
| Weight: | 2.55 kg |
| Diameter D (mm): | 30, 117 |
| Diameter d1 (mm): | 32, 78,5 |
| Length L (mm): | 106 |
| Length L1 (mm): | 17 |
| Length L2 (mm): | 29 |
| Manufacturer's brand: | FKL |
| Material: | steel |
| Pitch J (mm): | 98 |
| Thread G: | M24x2 |
| Thread G1: | 4xM12x1,25 |
| Width C (mm): | 27,5 |
| Značení: | IL50-98/4T-M24L |
| Typ: | Ložiska |
