FKL AGRO IL50-125/6T-M30x2-164 bearing for disc harrows
Code: 388959
Product detailed description

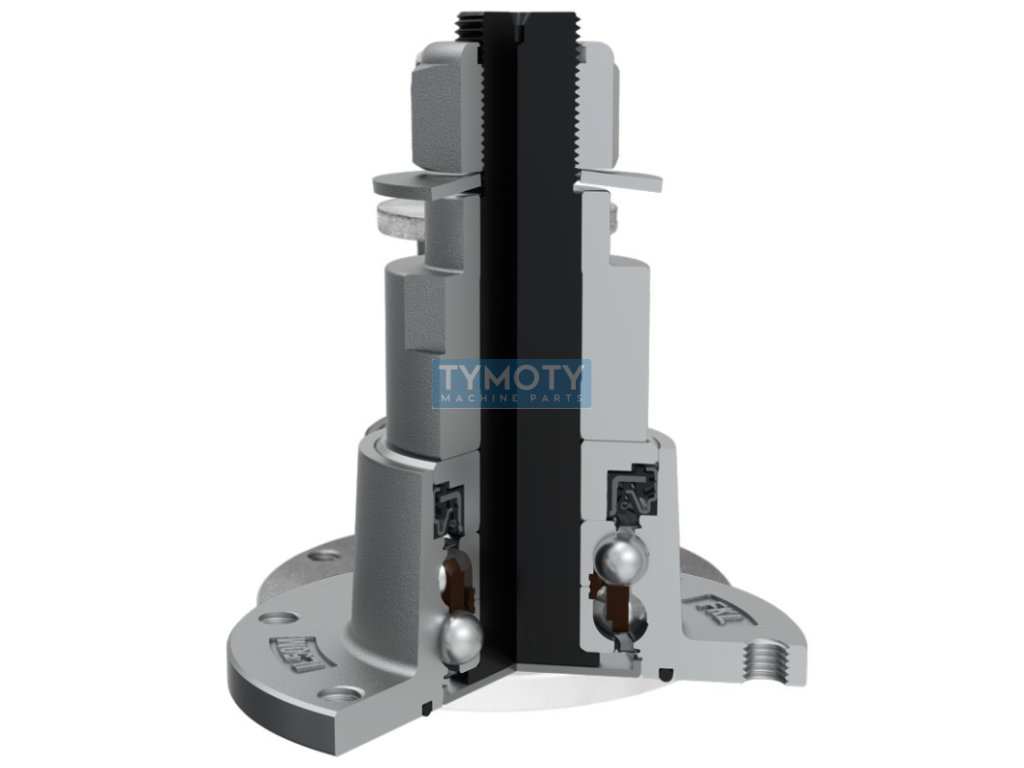

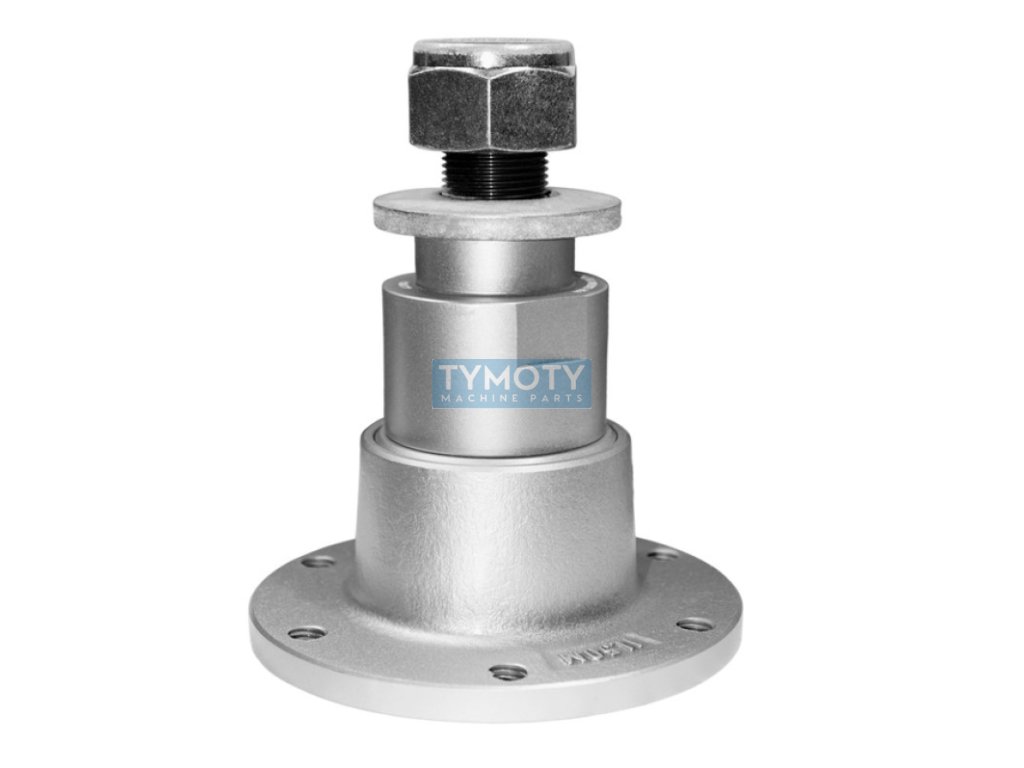

FKL AGRO POINT IL50-125/6T-M30x2-164 - bearing unit - disc holder for disc harrows with six holes with M12x1.5 threads and M30x2 thread on the shaft.Can be used as a replacement for: HORSCH 28 28283600,28288000
Additional parameters
| Category: | Bearings > agricultural > for disk gates |
|---|---|
| Weight: | 4.789 kg |
| Diameter D (mm): | 45, 145 |
| Length L (mm): | 164 |
| Length L1 (mm): | 103 |
| Length L2 (mm): | 22 |
| Manufacturer's brand: | FKL |
| Material: | steel |
| Pitch J (mm): | 125 |
| Thread G: | M30x2 |
| Thread G1: | 6xM12x1,5 |
| Thread length b (mm): | 43 |
| Width A (mm): | 18 |
| Značení: | IL50-125/6T-M30x2-164 |
| Typ: | Ložiska |
