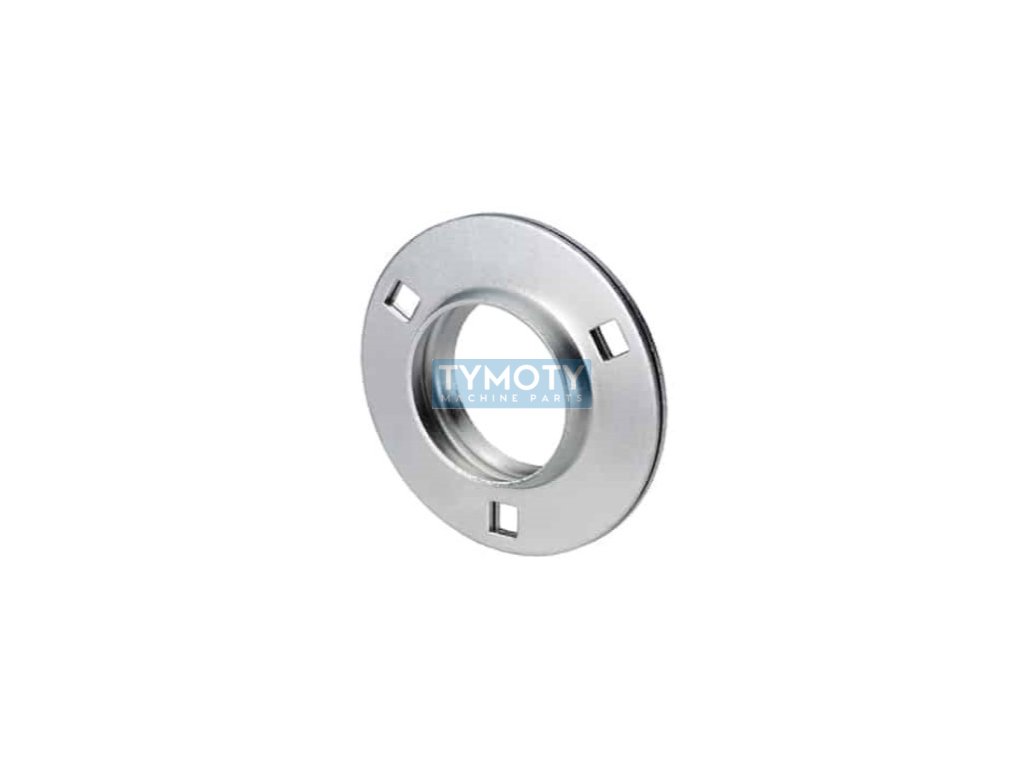

FK PF 206 (PF 62) round sheet metal bearing body
Code: 383464
Product detailed description
FK PF 206 (PF 62) is a round sheet metal bearing housing designed for applications requiring reliable bearing mounting in various structural assemblies. This component is made of steel, which guarantees high strength and resistance to mechanical stress. The zinc coating provides additional corrosion protection, thereby extending the life of the housing in harsh operating conditions.The bearing housing has an outer diameter D of 62 mm, which allows compatibility with bearings of the corresponding size. The hole spacing J is 90.5 mm, which is crucial for proper mounting in the structure. The additional spacing N is 10.5 mm. The total height of the housing H reaches 112 mm, which is important for space planning during assembly. The width A1 is 2.5 mm and the width A2 is 9.5 mm, which are critical dimensions for precise seating and stability of the bearing housing in the application.
The G thread is size 10, which allows the use of standard fasteners to ensure a firm and stable fit. The FK PF 206 bearing housing is suitable for a wide range of industrial applications, where reliable support and protection of the bearing is required, due to its dimensions and material properties.
Additional parameters
| Category: | Bearings > bearing bodies > for clamping bearings > round > sheet metal (PF.., ..MSA, ..MSB) > 206/62 |
|---|---|
| Weight: | 0.8 kg |
| EAN: | 3838486220660 |
| Diameter D (mm): | 62 |
| Height H (mm): | 112 |
| Manufacturer's brand: | FK |
| Material: | steel |
| Pitch J (mm): | 90,5 |
| Spacing N (mm): | 10,5 |
| Thread G: | 10 |
| Width A1 (mm): | 2,5 |
| Width A2 (mm): | 9,5 |
| Značení: | PF 206 |
| Typ: | plechové ložiskové těleso |
