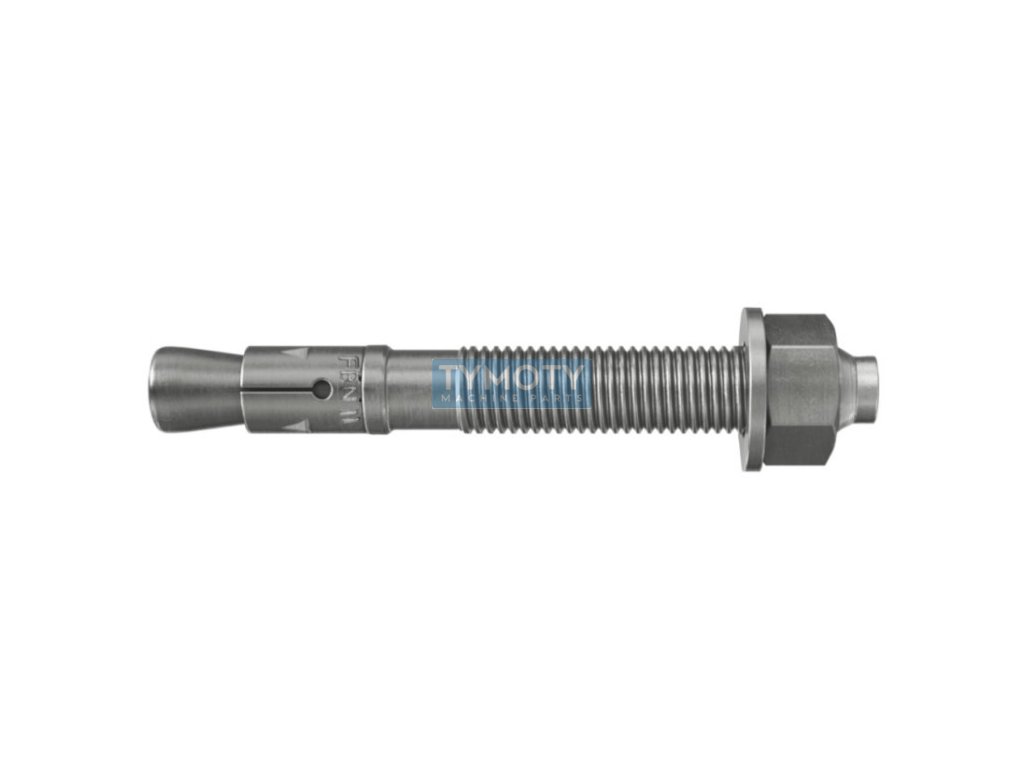

fischer FBN II 8/30/91 R bolt anchor, stainless steel A4
Code: 882141
Product detailed description
Single-cone steel anchor, A4 stainless steel, with washer and nut for fastening into concrete or stone. It is suitable for anchoring structures, columns, machines, railings and the like into cracked and stone-free concrete.Additional parameters
| Category: | Fasteners > anchors > through-hole KPO |
|---|---|
| Weight: | 0.034 kg |
| EAN: | 4048962087390 |

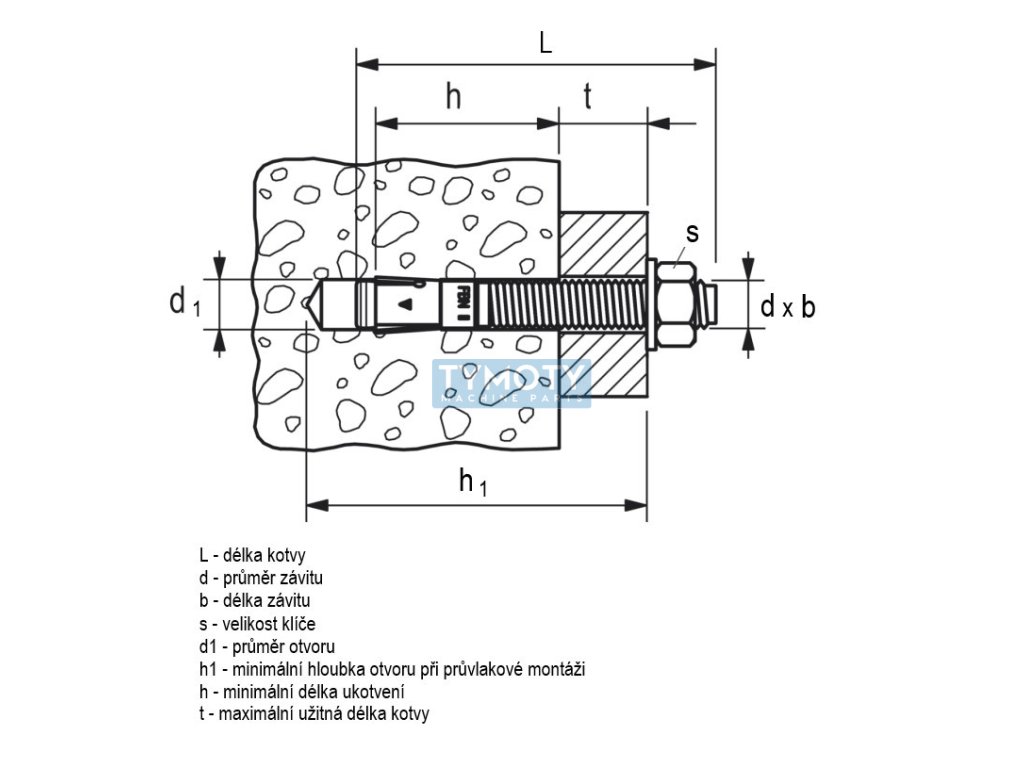

| Diameter D (mm): | M8 |
| Diameter d1 (mm): | 8 |
| Height H (mm): | 40 |
| Height H1 (mm): | 86 |
| Length L (mm): | 91 |
| Manufacturer's brand: | fischer |
| Material: | stainless steel |
| Spacing t (mm): | 40 |
| Surface finish: | A4 |
| Thread length b (mm): | 59 |
| Thread type: | metric |
| Width s (mm): | 13 |
